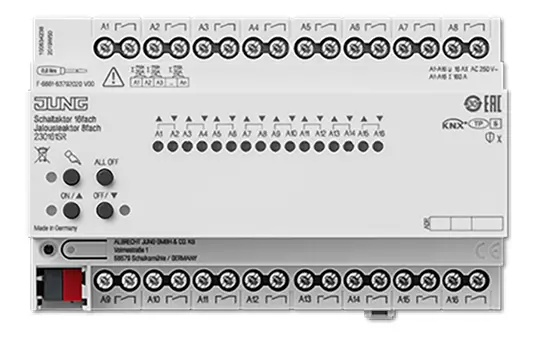

JUNG 230161SR KNX Universal Actuator | 16x

Manufacturer: JUNG

Article no.: 20013546

EAN: 4011377179127

Manufacturer item number: 230161SR

Manufacturer type: 23016 1S R

Weight: 0,586 kg

In stock

Delivery: 2-3 business days

pcs

REG enclosure 8 TE with electronic manual operation and LED status display

Planning and commissioning with ETS5 or newer ETS product family

Output

Product type: Binary output mix

Intended use

Switching electrical consumers with potential-free contacts

Switching electrically operated blinds, roller shutters, awnings, and similar coverings

Mounting on DIN EN 60715 top-hat rail in sub-distribution board

Product features

Outputs manually operable, construction site operation

Feedback in manual operation and bus operation

Locking of individual outputs by hand or bus

Central functions

Cyclic monitoring

KNX Data Secure compatible from ETS 5.7 onwards.

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: JUNG
Capacitive load in µF: 140
Casambi: No
Class: Universal actuators
DALI: No
Different phases can be connected: Yes
Dimming: No
Division units: 8 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 230161SR
Manufacturer type: 23016 1S R
Matter: No
max. switching current in A: 16
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of binary inputs: 16
Number of blind outputs: 8
Number of outputs: 16
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: Yes
Switch: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: JUNG
Capacitive load in µF: 140
Casambi: No
Class: Universal actuators
DALI: No
Different phases can be connected: Yes
Dimming: No
Division units: 8 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 230161SR
Manufacturer type: 23016 1S R
Matter: No
max. switching current in A: 16
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of binary inputs: 16
Number of blind outputs: 8
Number of outputs: 16
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: Yes
Switch: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
