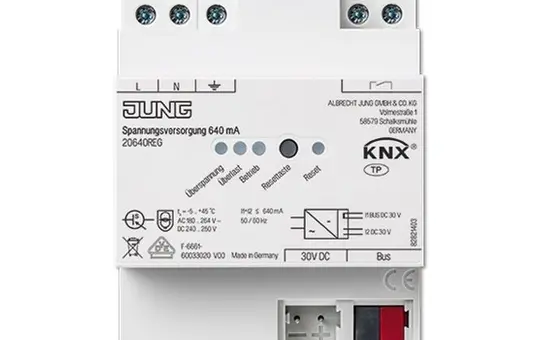

JUNG 20640REG KNX bus power supply 640mA

JUNG 20640REG KNX bus power supply | 640mA

Manufacturer: JUNG
Article no.: 20018510
EAN: 4011377159044
Manufacturer item number: 20640REG
Manufacturer type: 20640 REG
Weight: 0,286 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Intended Use


Supply of KNX devices with bus voltage

Supply of devices with direct current

Mounting on DIN rail according to DIN EN 60715 in sub-distribution boards



Product Features


Output with integrated choke for supply of KNX bus lines

DC 30 V output for supply of additional devices

Nominal current freely distributable across outputs

Reset button

Short-circuit proof

Overvoltage resistant

No-load safe

Suitable for operation in systems with emergency power supply

Potential-free signalling contact for operational and diagnostic messages

Can be connected in parallel with identical KNX power supply (up to the maximum short-circuit current)



Technical Data


Nominal voltage: AC 200 ... 240 V ~

Mains frequency: 50/60 Hz

Power loss (max. load of all outputs): max. 2.9 W

Efficiency: approx. 87 %

Nominal voltage: DC 240 ... 250 V KNX

KNX medium: TP 256

Bus output voltage: DC 28 ... 31 V SELV

Output current: 640 mA (all outputs)
BAB-Tec
No
Bluetooth
No
Brand
JUNG
Casambi
No
Class
Power supplies
DALI
No
Division units
4 TE
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
distribution cabinet
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
Manufacturer item number
20640REG
Manufacturer type
20640 REG
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Output current in mA
640
Secondary voltage
No
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with diagnostic function
No
with Netatmo
No
with UPS
No
Zigbee
No
