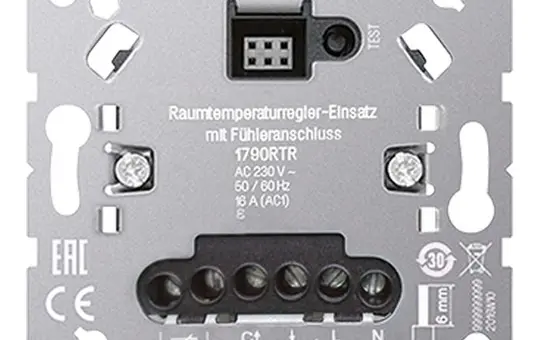

JUNG 1790RTR room thermostat insert | 230 V, sensor connection

Manufacturer: JUNG

Article no.: 20042265

EAN: 4011377172050

Manufacturer item number: 1790 RTR

Manufacturer type: 1790RTR

Weight: 0,09 kg

In stock

Delivery: 2-3 business days

69,16 €

incl. VAT + shipping

pcs

with sensor connection for JUNG HOME attachments Item no.: BT .. 1791 .. for LB-Management attachments Item no.: .. 1790 D .. for KNX RF attachments Item no.: .. 10911 ST RF .., .. 10921 ST RF .. Intended use Switching of electric underfloor heating and electrothermal actuators Operation with room temperature controller attachment Installation in device box with dimensions according to DIN 49073 Product features Pulse width modulation (PWM) or two-point control (On/Off) Remote sensor (Item no.: FF NTC, FF 7.8) can be connected Input for switching to cooling mode Interrupts the heating process after 60 minutes (overheating protection of a heater) Nominal voltage: AC 230 V ~ Mains frequency: 50/60 Hz Standby power depends on the attachment: approx. 0.1 ... 0.5 W Switching current 230 V AC1: 10 mA ... 16 A Connected load: max. 3,600 W Connection single-wire: 1 x 0.5 ... 4.0 mm2 2 x 0.5 ... 2.5 mm2 fine-wire without wire end ferrule: 1 x 0.5 ... 4.0 mm2

Brand: JUNG
Class: Temperature controller
Configuration: electronic
Connection: Single-/fine-stranded
Function type: Heat
Manufacturer item number: 1790 RTR
Manufacturer type: 1790RTR
old Voltus number: 1700860
Operating mode: Rotary knob
Power supply: 230V AC
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS Design | LS Plus | LS Zero
Switch: Yes

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Produktdatenblatt

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Class: Temperature controller
Configuration: electronic
Connection: Single-/fine-stranded
Function type: Heat
Manufacturer item number: 1790 RTR
Manufacturer type: 1790RTR
old Voltus number: 1700860
Operating mode: Rotary knob
Power supply: 230V AC
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS Design | LS Plus | LS Zero
Switch: Yes
