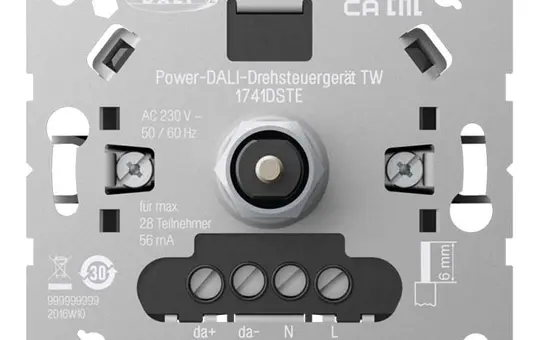

JUNG 1741DSTE DALI rotary potentiometer | Tunable White, bus voltage supply

Manufacturer: JUNG

Article no.: 20019918

EAN: 4011377206588

Manufacturer item number: 1741DSTE

Manufacturer type: 1741DSTE

Weight: 0,111 kg

In stock

Delivery: 4-8 business days

pcs

Intended Use

Brightness adjustment for luminaires with DALI/DALI-2 interface
Adjustment of colour temperature for luminaires with DALI Device Type 8 for Tunable White according to IEC 62386-209
Installation in device box with dimensions according to DIN 49073

Product Features

The Power DALI rotary control unit TW supplies the control current for up to 28 DALI participants.
Storing of colour temperature limit values
Storing of basic brightness and switch-on brightness
Certified according to IEC 62386-101 and -103 (Single Master)
The device operates as a DALI-2 single master and must not be combined with other DALI controllers.

Nominal voltage: AC 230 V ~
Network frequency: 50/60 Hz
Power consumption: max. 2 W
Ambient temperature: −5 ... +45 °C
Nominal DALI voltage: DC 16 V (typ.)
Permissible bus current: max. 250 mA
Guaranteed bus current: 56 mA
Short-circuit current: max. 61 mA
Colour temperature setting: 2,000 ... 10,000 K
Output current: max. 56 mA
Number of DALI participants: max. 28

Brand: JUNG
Class: dimmer
Dimming method: DALI
Manufacturer item number: 1741DSTE
Manufacturer type: 1741DSTE
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero
Type of operation: Rocker/button

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Data Sheet

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Class: dimmer
Dimming method: DALI
Manufacturer item number: 1741DSTE
Manufacturer type: 1741DSTE
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero
Type of operation: Rocker/button
