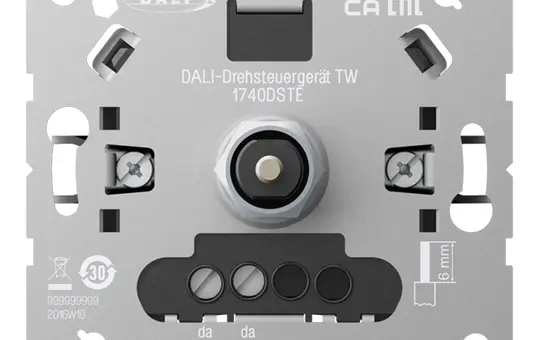

JUNG 1740DSTE DALI rotary potentiometer | Tunable White

Manufacturer: JUNG

Article no.: 20019917

EAN: 4011377206540

Manufacturer item number: 1740DSTE

Manufacturer type: 1740DSTE

Weight: 0,111 kg

In stock

Delivery: 4-8 business days

pcs

Intended use

Brightness adjustment for luminaires with DALI/DALI-2 interface
Adjustment of colour temperature for luminaires with DALI Device Type 8 for Tunable White according to IEC 62386-209
Installation in device box with dimensions according to DIN 49073

Product features

The DALI rotary control unit TW is powered by the DALI voltage, which must be provided by an external DALI power supply according to IEC 62386-101.
Storage of colour temperature limit values
Storage of basic brightness and an initial brightness
Certified according to IEC 62386-101 and -103 (Single Master)
The device operates as a DALI-2 Single Master and must not be combined with other DALI controllers. (External DALI power supply according to IEC 62386-101 required)
Rated voltage DALI: DC 16 V (typ.)
Power consumption: max. 2 W
Ambient temperature: −5 ... +45 °C
Colour temperature setting: 2,000 ... 10,000 K

Brand: JUNG
Class: dimmer
Dimming method: DALI
Manufacturer item number: 1740DSTE
Manufacturer type: 1740DSTE
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero
Type of operation: Rocker/button

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Deeplink

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Class: dimmer
Dimming method: DALI
Manufacturer item number: 1740DSTE
Manufacturer type: 1740DSTE
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero
Type of operation: Rocker/button

Documents
