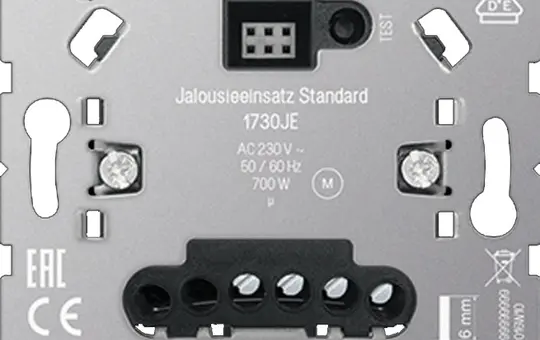

JUNG 1730JE Blind Insert standard

JUNG 1730JE Blind Insert | standard

Manufacturer: JUNG
Article no.: 20018088
EAN: 4011377151390
Manufacturer item number: 1730JE
Manufacturer type: 1730 JE
Weight: 0,1 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
without extension input for attachments JUNG HOME Art. no.: BT .. 17101 .., BT .. 17102 .. for attachments eNet Art. no.: FM .. 1700 .., FM .. 1701 .. for attachments LB-Management Art. no.: .. 1700 .., .. 1701 .., .. 1750 D .., .. 1751 BT .. for attachments KNX RF Art. no.: .. 10911 ST RF .., .. 10921 ST RF ..

Intended use
Control of electrically operated blinds, roller shutters and awnings
Automatic time control via attachment
Operation with suitable attachment
Installation in device box with dimensions according to DIN 49073

Product features
Automatic control via timer
Test mode for function check
Output polarity reversal for simplified commissioning from version V01
Storage of a ventilation position possible via attachment
Rated voltage: AC 230 V ~
Network frequency: 50/60 Hz
Ambient temperature: −5 ... +45 °C
Contact type: µ
Standby power consumption: max. 0.5 W
Running time: approx.
Brand
JUNG
Class
Blind inserts
Extension entrance
No
Manufacturer item number
1730JE
Manufacturer type
1730 JE
Series
A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero
