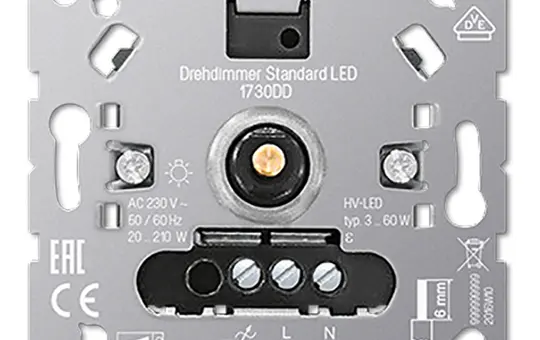

JUNG 1730DD Rotary Dimmer | RLC, LED, 3-60W

Manufacturer: JUNG

Article no.: 20018616

EAN: 4011377166974

Manufacturer item number: 1730DD

Manufacturer type: 1730 DD

Weight: 0,109 kg

In stock

Delivery: 2-3 business days

pcs

Intended Use

Switching and dimming of lighting

Operation with suitable cover

Installation in device box with dimensions according to DIN 49073

Product Features

Device operates according to the phase-on or phase-off principle

Automatic adjustment of the dimming principle to the connected load

Device can be operated without neutral conductor

Switch-on with lamp-friendly soft start

Switch-on with last set brightness or stored switch-on brightness

Switch-on brightness permanently storable

Minimum brightness permanently storable

Electronic short-circuit protection with permanent shutdown after a maximum of 7 seconds

Electronic overtemperature protection

Power extension possible through power add-ons (Art.-No. ULZ 1755 REG)

Optional Accessories:

Compensation module LED, Art.-No.: KM LED 230 U with incremental encoder without auxiliary input

Rated voltage: AC 230 V ~

Mains frequency: 50/60 Hz

Standby power consumption: approx. 0.35 W

Power loss: approx.

Brand: JUNG
Class: dimmer
Dimming method: Phase lead/edge
Manufacturer item number: 1730DD
Manufacturer type: 1730 DD
Power in W: 60
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero
Type of operation: Rotary/push button

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Deeplink

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Class: dimmer
Dimming method: Phase lead/edge
Manufacturer item number: 1730DD
Manufacturer type: 1730 DD
Power in W: 60
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero
Type of operation: Rotary/push button
