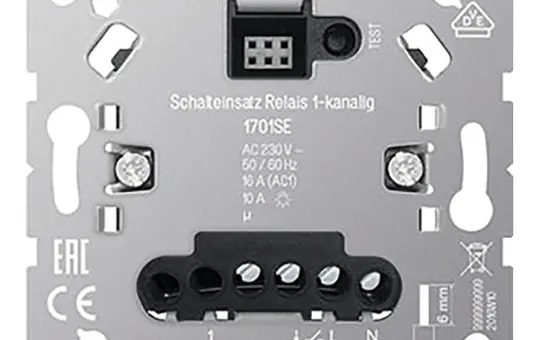

JUNG 1701SE Relay Insert | 1-fold

Manufacturer: JUNG

Article no.: 20018607

EAN: 4011377166875

Manufacturer item number: 1701SE

Manufacturer type: 1701 SE

Weight: 0,099 kg

In stock

Delivery: 2-3 business days

pcs

with auxiliary input for attachments JUNG HOME Art. no.: BT .. 17101 .., BT .. 17102 .., BT .. 17181 .., BT .. 17182 .., BT .. 1791 .. for attachments eNet Art. no.: FM .. 1700 .., FM .. 1701 .. for attachments LB management Art. no.: .. 1700 .., .. 1701 .., .. 1750 D .., .. 1751 BT .., .. 17180 .., .. 17280 .., .. 17181 .., .. 17281 .., DWPM 17360 .., .. 1790 D .. for attachments KNX RF Art. no.: .. 10911 ST RF .., .. 10921 ST RF ..

Intended use

Switching lighting and motors
Operation with suitable attachment
Control of electric underfloor heating and electrothermal actuators in combination with a room temperature controller attachment
Installation in device box with dimensions according to DIN 49073

Product features

Connection of auxiliary stations possible
Adjustable run-on times
Test mode for function check
Adaptive zero-point switching
Rated voltage: AC 230 V ~
Network frequency: 50/60 Hz

Brand: JUNG
Class: Switch inserts
Manufacturer item number: 1701SE
Manufacturer type: 1701 SE
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS design | LS Plus | LS Zero
