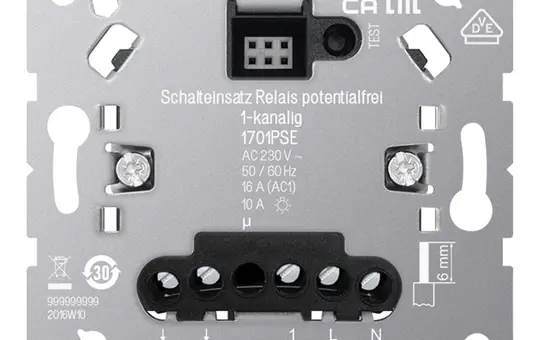

JUNG 1701 PSE relay insert | 1-fold, potential-free

Manufacturer: JUNG

Article no.: 20041566

EAN: 4011377206946

Manufacturer item number: 1701 PSE

Manufacturer type: 1701 PSE

Weight: 0,078 kg

In stock

Delivery: 2-3 business days

62,47 €

incl. VAT + shipping

pcs

Relay switch insert, 1-channel 1701 PSE Composition basic element, design relay, load type universal, extension input, can be used with button, can be used with motion detector, can be used with presence detector, can be used with timer, can be used with radio button, mounting type flush-mounted, material other, material quality other, surface protection untreated, nominal voltage 230V, frequency 50 ... 60Hz, rated current 16A, switching capacity 2300 ... 2300W, number of channels 1, fastening type claw/screw fastening, min. depth of the device box 32mm,

Brand: JUNG
Class: Switch inserts
Configuration: Extension
Manufacturer item number: 1701 PSE
Manufacturer type: 1701 PSE
old Voltus number: 1707127
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS Design | LS Plus | LS Zero

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

JUNG
Albrecht Jung GmbH & Co. KG
Volmestr. 1
58579 Schalksmühle
DE

kundencenter@jung.de
www.jung-group.com/de-DE/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: JUNG
Class: Switch inserts
Configuration: Extension
Manufacturer item number: 1701 PSE
Manufacturer type: 1701 PSE
old Voltus number: 1707127
Series: A 550 | A creation | A Cube | A flow | A Viva | AS 500 | CD 500 | CD Aufputz | CD plus | LS 1912 | LS 990 | LS Cube | LS Design | LS Plus | LS Zero
