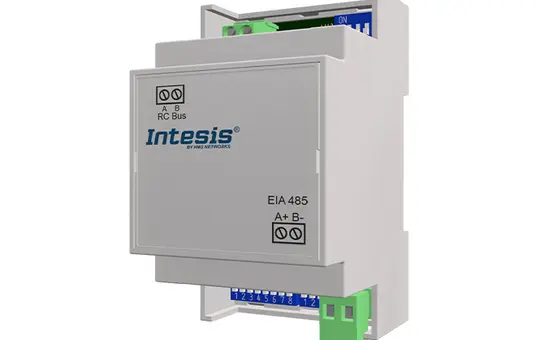

INTESIS INMBSTOS001R000 Modbus-RTU Climate Gateway Toshiba VRF and Digital Systems

INTESIS INMBSTOS001R000 Modbus-RTU Climate Gateway | Toshiba VRF and Digital Systems

Manufacturer: INTESIS
Article no.: 20041716
EAN: 2050006651414
Manufacturer item number: INMBSTOS001R000
Manufacturer type: TO-RC-MBS-1
Weight: 0,22 kg
Available on request
Electrical appliance take-back
pcs
IntesisBox TO-RC-MBS-1 enables the monitoring and control of fully bidirectional, functioning parameters of Toshiba VRF and Digital Air Conditioners in Modbus RTU (RS-485) networks.



Product features:


  • Reduced dimensions: 93 x 53 x 58 mm.

  • Fast and easy installation.

  • Mounting on DIN rail, wall, or even inside the indoor unit in some AC models.

  • No external power supply required.

  • Direct connection to MODBUS RTU (EIA485) networks.

  • TO-RC-MBS-1 is a Modbus slave device.

  • Direct connection to the AC indoor unit.

  • Configuration via both DIP switches and MODBUS RTU.

  • Total control and monitoring.

  • Real states of the internal variables of the AC unit.

  • Allows simultaneous use of the control panel and MODBUS RTU.




For further technical data, please refer to the user manual / installation guide under Documentation.
BAB-Tec
No
Binary inputs integrated
No
Bluetooth
No
Brand
INTESIS
Casambi
No
Class
Climate gateway
DALI
No
Division units
5 TE
ENOcean
No
External power supply
No
free@home
No
Gira One
No
Hager KNXeasy
No
Infrared transmitter
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Manufacturer item number
INMBSTOS001R000
Manufacturer type
TO-RC-MBS-1
Matter
No
Mbus
No
Modbus
Yes
Modbus RTU
Yes
Modbus TCP
No
Mounting type
Series installation
Shelly
No
Siemens LOGO!
No
suitable for manufacturers
Samsung
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
