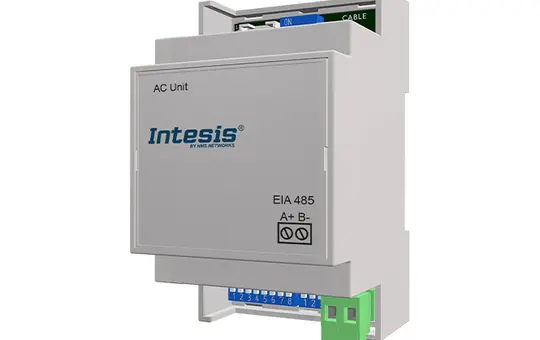

INTESIS INMBSPAN001I100 Modbus RTU climate gateway Panasonic Ethereum

INTESIS INMBSPAN001I100 Modbus RTU climate gateway | Panasonic Ethereum

Manufacturer: INTESIS
Article no.: 20041721
EAN: 8437009191415
Manufacturer item number: INMBSPAN001I100
Manufacturer type: PA-AC-MBS-1
Weight: 0,22 kg
Available on request
296,31 €
incl. VAT + shipping
pcs
The IntesisBox PA-AC-MBS-1 allows monitoring and controlling all operating parameters of Panasonic Etherea air conditioners via Modbus RTU (RS-485) networks. Main features: - Compact dimensions: 93 x 53 x 58 mm. - Quick and easy installation. Mounting on DIN rail, wall, or even inside the indoor unit in some AC models. - No external power supply required. - Direct connection to MODBUS RTU (EIA485) networks. Up to 63 PA-AC-MBS-1 devices can be connected to the same network. The PA-AC-MBS-1 is a Modbus slave device. - Direct connection to the AC indoor unit. - Configuration via both DIP switches and MODBUS RTU. - Total control and monitoring of the real states of the AC unit's internal variables. - Allows simultaneous use of IR and wired remote controls and MODBUS RTU. For more technical specifications, please refer to the User Manual/Installation Guide in the Documentation section.
Brand
INTESIS
Class
Climate gateway
Different bus system
-
Division units
5
Manufacturer item number
INMBSPAN001I100
Manufacturer type
PA-AC-MBS-1
Modbus
Yes
Modbus RTU
Yes
Mounting type
Series installation
old Voltus number
1561443
suitable for manufacturers
Samsung
Type of transmission
Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Benutzerhandbuch (en)
Manufacturer information
INTESIS
HMS Industrial Networks GmbH
Emmy Noether Straße 16
76131 Karlsruhe
DE

dadr@hms.se
www.hms-networks.com/de/intesis
