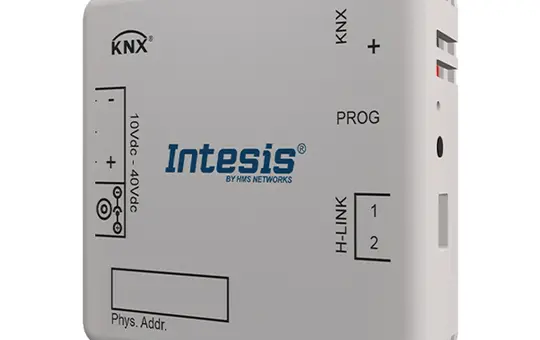

IntesisBox HI-AW-KNX-1 enables bidirectional monitoring and control of Hitachi air-to-water systems from KNX installations. The interface is compatible with all models of the Yutaki line marketed by Hitachi. Main features: - Reduced dimensions - Multiple control and status objects (bit, byte, character, etc.) using standard KNX data points. - One status object is available for each control object. - Control of the AW unit based on the ambient temperature read by the device itself or the temperature read by a KNX thermostat. - The Hitachi AW can be controlled simultaneously via the AW system's remote control or via the KNX bus. - Overall monitoring and control of the Hitachi AW unit from KNX, including internal variable monitoring, special control (e.g., anti-Legionella), and fault alarms and codes. For further technical specifications, please refer to the user manual/installation guide in the documentation.
Brand
INTESIS
Class
Climate gateway
Different bus system
-
Infrared transmitter
Yes
KNX
Yes
KNX-TP
Yes
Manufacturer item number
INKNXHIT001A000
Manufacturer type
HI-AW-KNX-1
Mounting type
Surface-mounted
old Voltus number
1561423
suitable for manufacturers
Hitachi
Type of transmission
Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Benutzerhandbuch (en)
Manufacturer information
INTESIS
HMS Industrial Networks GmbH
Emmy Noether Straße 16
76131 Karlsruhe
DE

dadr@hms.se
www.hms-networks.com/de/intesis
