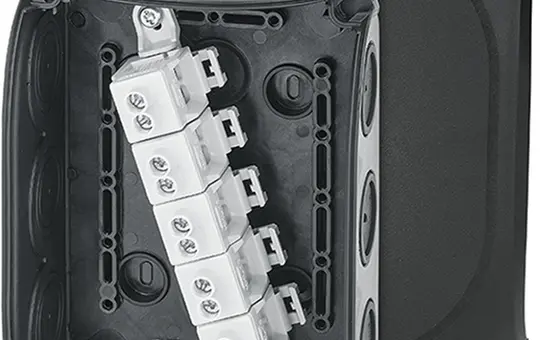

HENSEL DK1010B Cable Junction Box with Terminals Series DK 130x180x77 mm | black | 10 mm²

HENSEL DK1010B Cable Junction Box with Terminals Series DK | 130x180x77 mm | black | 10 mm²

Manufacturer: HENSEL
Article no.: 20083702
EAN: 4012591134459
Manufacturer item number: 62000302
Manufacturer type: DK 1010 B
Weight: 0,385 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Junction boxes according to IEC 60670-22 with built-in terminal block and detachable, flexible sealing membranes. Suitable for indoor use and protected outdoor installation according to DIN VDE 0100, Part 737. For ambient temperatures up to +40 °C and down to -25 °C, with relative humidity of 50 % at +40 °C or 100 % at +25 °C. Material temperature resistance from -25 °C to +70 °C, flammability according to VDE 0471, Part 2 – glow wire test 750 °C, UL Subject 94 V-2. Protection rating according to IEC 60529: IP 66. Rated insulation voltage: 690 V. Material: thermoplastic, halogen- and silicone-free. Colour: black, RAL 9011. Lid fastening with quick-release, sealable without accessories. Plug-in external tabs for wall mounting included in the scope of delivery.
Brand
HENSEL
Class
Junction boxes
Depth in mm
77
Halogen free
Yes
Manufacturer item number
62000302
Manufacturer type
DK 1010 B
Protection class (IP)
IP66
Width in mm
180

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
HENSEL
Gustav Hensel GmbH & Co. KG
Gustav-Hensel-Str. 6
57368 Lennestadt
DE

info@hensel-electric.de
www.hensel-electric.de/
