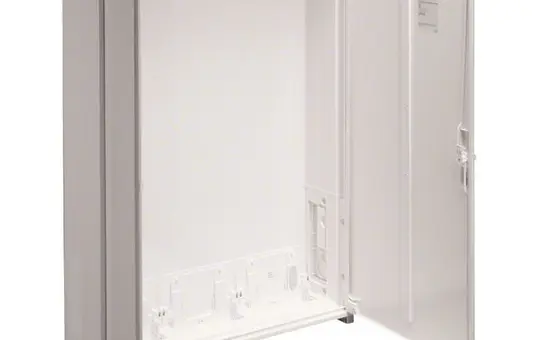

HAGER ZB33S Meter Cabinet universZ IP44 SKII 3 fields | 1100 mm

HAGER ZB33S Meter Cabinet universZ IP44 SKII | 3 fields | 1100 mm

Manufacturer: HAGER
Article no.: 20006008
EAN: 3250617620277
Manufacturer item number: ZB33S
Manufacturer type: ZB33S
Weight: 28,585 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Meter cabinet, univers Z, 1100x800x205 mm, protection class II, 252 module spaces. Cabinet enclosure according to DIN VDE 0603-1, dimensional standard DIN 43870 for surface-mounted, flush-mounted or semi-recessed installation. For the construction of a meter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection rating IP31 (IP44/IP54 according to DIN VDE 0470-1), protection class II double insulated, protection rating IP3X behind the door. Consisting of a cabinet with door made of powder-coated, baked-on, stably profiled 1 mm thick sheet steel. Interior lining entirely made of plastic. Cable entries at top and bottom through built-in plastic flange plates, rear pre-embossing in the plastic part and laterally built-in plastic flange plates in the area of the NAR (suitable as busbar passage), the RfZ (only with a height of 1100 mm) and the AAR. Door flush with the front with internal, adjustable hinges, optionally hinged on the right or left with a 110° opening angle.
Brand
HAGER
Class
Modular cabinets
Colour
white
Depth in mm
205
Height in mm
1100
Manufacturer item number
ZB33S
Manufacturer type
ZB33S
Mounting type
Surface-mounted | Partially sunk
Number of distribution panels
3
Protection class (IP)
IP44
Width in mm
800
Manufacturer information
HAGER
Hager Vertriebsges.mbH&Co.KG
Zum Gunterstal
66440 Blieskastel
DE

info@hager.de
hager.com/de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
Recycling & disposal
Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
