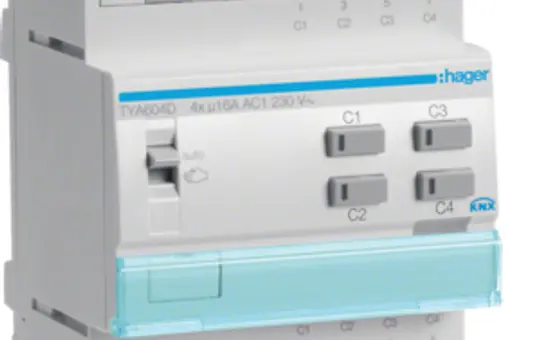

HAGER TYA604D KNX universal actuator 4-fold, 16 A, C load

HAGER TYA604D KNX universal actuator | 4-fold, 16 A, C load

Manufacturer: HAGER
Article no.: 20007535
EAN: 3250616059832
Manufacturer item number: TYA604D
Manufacturer type: TYA604D
Weight: 0,236 kg
Available on request
235,97 €
incl. VAT + shipping
pcs
4/2-way KNX switching/blind actuator, 16A, C-load. Switching output for switching 4 socket/lighting outputs or 2 blinds. To control lighting outputs, you can select between ON/OFF, timer, safety off, forced control, lock, logic, preset, delay function, or 64 scene functions per channel. With toggle function for time or permanent function. The blind function can be used to adjust the UP/DOWN/STOP movement command and the slat angle. Percentage control of the blind to move to a predefined position. The sun protection function, in conjunction with an outdoor sensor, can be used to control the brightness for each room. With alarm function for controlling the blind to a defined position. Safety down as long as the button is pressed. 64 scene functions per channel. Logic block for controlling the output depending on the result of a logical operation. Preset, lock function, forced control.
Blinds
Yes
Brand
HAGER
Class
Universal actuators
Different bus system
-
Different phases can be connected
Yes
Division units
4
KNX
Yes
KNX-TP
Yes
Local/manual operation
Yes
Manufacturer item number
TYA604D
Manufacturer type
TYA604D
Mounting type
Series installation
Number of blind outputs
2
Number of outputs
4
old Voltus number
1504614
Rated voltage outputs
230V AC
Size of connection terminal in mm2
2.50
suitable for C load
Yes
Switch
Yes
Type of transmission
Cable
Manufacturer information
HAGER
Hager Vertriebsges.mbH&Co.KG
Zum Gunterstal
66440 Blieskastel
DE

info@berker.de
hager.com/de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
