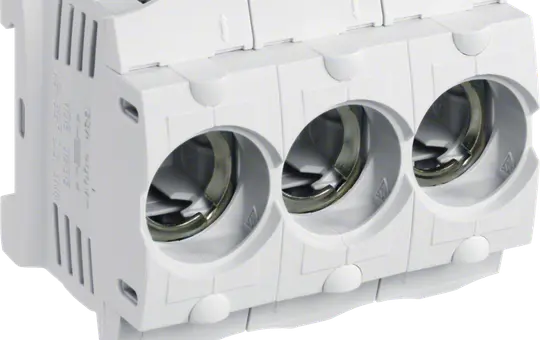

HAGER LD047 fuse base D01, 16 A, 3-polig

HAGER LD047 fuse base | D01, 16 A, 3-polig

Manufacturer: HAGER
Article no.: 20081244
EAN: 3250614040023
Manufacturer item number: LD047
Manufacturer type: LD047
Weight: 0,233 kg
In stock
Delivery: 2-3 business days
12,64 €
incl. VAT + shipping
pcs
The LD047 fuse base is a robust 3-pole D01 base made of high-quality plastic for use with fuse links up to 16 A. It is ideal for mounting on DIN rails and is used in distribution and control systems. The base is compatible with common D01 fuses (2 A to 16 A, gG characteristic) and offers safe and convenient wiring thanks to its box terminals and cage connections. The connection range includes flexible conductors from 1.5 to 35 mm². With a rated torque of 2.5 to 3 Nm, the base can be installed reliably. The integrated cover increases safety during operation and maintenance. The power loss under rated current is 8.7 W at a frequency of 50 Hz. With its compact dimensions (72 x 79 x 62 mm), the LD047 is ideal for space-saving installations. A reliable fuse base for daily use in building services and industry.
Brand
HAGER
Class
Fusible links
Configuration of the fusible fuse
D01
Manufacturer item number
LD047
Manufacturer type
LD047

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt
Manufacturer information
HAGER
Hager Vertriebsges.mbH&Co.KG
Zum Gunterstal
66440 Blieskastel
DE

info@hager.de
hager.com/de
