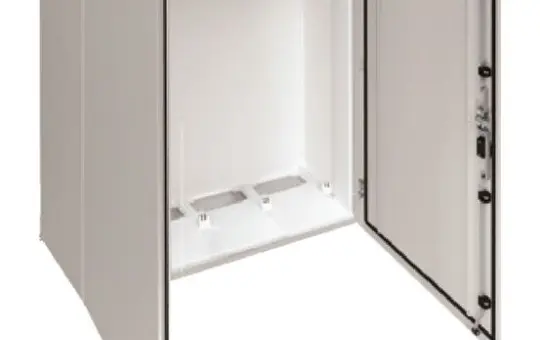

HAGER FR94H Wall Cabinet IP55 SKII D=400 mm | 4 fields | 1400 mm

Manufacturer: HAGER

Article no.: 20009130

EAN: 3250610703038

Manufacturer item number: FR94H

Manufacturer type: FR94H

Weight: 78 kg

Available on request

pcs

Cabinet, universal, IP55/II, 1400x1050 x 400mm. Surface-mounted cabinet for indoor installation with VDE certificate (production monitoring) according to DIN EN 61439-1/-2/-3 and dimensional standard DIN 43870, for surface mounting. For the construction of a low-voltage distribution up to 800 A, 3AC, 690 V 50 Hz. Protection rating IP55, protection class II, air and creepage distances according to DIN VDE 0110-1/-2. Consisting of a cabinet with door made of powder-coated, baked, profiled 1.5 mm thick steel sheet. Through flanges at top and bottom, ISO flange plates with metric embossings and quick locking installed per field. Embossings for an additional cable opening per field width. Busbar feed-throughs as side embossings. Door overlapping, with internal hinges, door hinge standard right, reversible, 110 degree opening angle. Standard with swing lever lock, DIN profile half-cylinder can be installed. Door seal fully foamed, temperature resistant and oil resistant.

Brand: HAGER
Class: Modular cabinets
Colour: gray
Depth in mm: 400
Height in mm: 1400
Impact resistance: IK10
Manufacturer item number: FR94H
Manufacturer type: FR94H
Mounting type: Surface-mounted
Number of distribution panels: 4
Protection class (IP): IP55
Width in mm: 1050

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Manufacturer information

HAGER
Hager Vertriebsges.mbH&Co.KG
Zum Gunterstal
66440 Blieskastel
DE

info@hager.de
hager.com/de

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: HAGER
Class: Modular cabinets
Colour: gray
Depth in mm: 400
Height in mm: 1400
Impact resistance: IK10
Manufacturer item number: FR94H
Manufacturer type: FR94H
Mounting type: Surface-mounted
Number of distribution panels: 4
Protection class (IP): IP55
Width in mm: 1050
