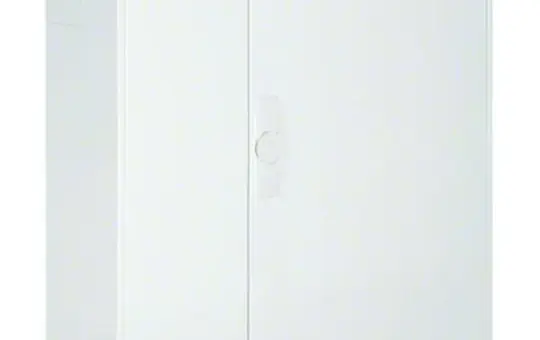

HAGER FP73SN2 Wall Cabinet IP44 SKII 3 fields | 1100 mm

HAGER FP73SN2 Wall Cabinet IP44 SKII | 3 fields | 1100 mm

Manufacturer: HAGER
Article no.: 20008690
EAN: 3250612667901
Manufacturer item number: FP73SN2
Manufacturer type: FP73SN2
Weight: 23,97 kg
Available on request
Electrical appliance take-back
pcs
Cabinet, universal, IP44/II, 1100x800x205mm, empty. Surface-mounted cabinet for indoor installation with VDE certification (production monitoring) according to DIN EN 61439-1/-3 and dimensional standard DIN 43870, suitable for surface-mounted, flush-mounted, or semi-recessed installation. For the construction of a low-voltage distribution up to 400 A, 3AC 230/400 V 50 Hz. Protection rating IP44, protection class II, air and creepage distances according to DIN VDE 0110-1/-2. Consists of a cabinet with door made of powder-coated, baked, robustly profiled 1 mm thick steel sheet, inner lining made of plastic. Through-flanges installed top and bottom per section, rear pre-embossing in the plastic part and busbar entries as double-sided side pre-embossing in the lower area. Door flush with front with internal, adjustable hinges, optionally hinged on the right or left with a 110-degree opening angle. Door with latch, from a width of 800 mm and for all cabinets from a height of 1250 mm with rod lock with three-point locking.
Brand
HAGER
Class
Modular cabinets
Colour
white
Depth in mm
205
Height in mm
1100
Impact resistance
IK09
Manufacturer item number
FP73SN2
Manufacturer type
FP73SN2
Mounting type
Ground setup
Number of distribution panels
3
Protection class (IP)
IP44
Width in mm
800

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink
Manufacturer information
HAGER
Hager Vertriebsges.mbH&Co.KG
Zum Gunterstal
66440 Blieskastel
DE

info@hager.de
hager.com/de

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
