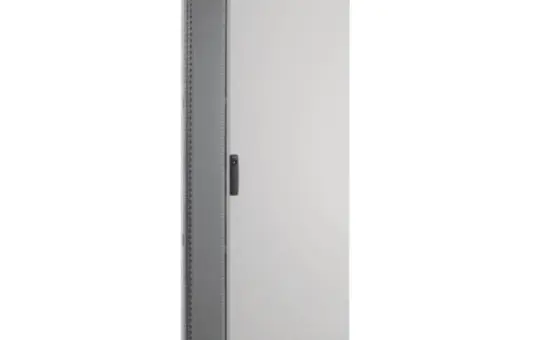

HAGER FG36XE Row-mounted distribution board IP41 D=600 mm | 6 fields | light gray | 2200 mm

Manufacturer: HAGER

Article no.: 20007416

EAN: 7611919375375

Manufacturer item number: FG36XE

Manufacturer type: FG36XE

Weight: 170 kg

Available on request

pcs

Row-mounted distribution board IP41 1600x2200x600 120° RAL7035, galvanized rear panel.

Row-mounted enclosure for indoor installation according to VDE 0660 Part 600-1/-2, DIN EN 61 439-1/-2, dimensions according to DIN 43870. Protection rating IP 41 according to DIN EN 60529 (VDE0470-1), protection rating IP 3x with door open, air and creepage distances according to VDE 0110, Part 1 and 2/1.89, rated insulation voltage AC 800 V, overvoltage category IV, pollution degree 3, insulation material class II, protection class I grounded.

Free-standing enclosure for single or row installation with removable rear and side panels, width from 1- to 6-fold, 144 to 864 modular units.

Internal installation system compatible with network systems: 3 AC 50 Hz 230/400 V or 3 AC 50 Hz 400/690 V with a maximum supply current of 1600 A.

Enclosure frame made of galvanized sheet steel, cover plate and rear panel made of hot-dip galvanized sheet steel.

With horizontal support rail for busbar stabilisation, coupling plates for busbar mounting, prepared for univers N internal installation system.

Brand: HAGER
Class: Modular cabinets
Colour: gray
Depth in mm: 600
Height in mm: 2200
Impact resistance: IK10
Manufacturer item number: FG36XE
Manufacturer type: FG36XE
Mounting type: Ground setup
Number of distribution panels: 6
Protection class (IP): IP41
Width in mm: 1600
