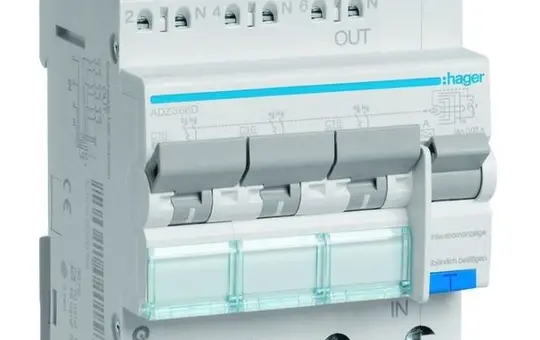

HAGER ADZ366D RCD/MCB Switch Type A C-Char. 30 mA 3P+N 16 A

HAGER ADZ366D RCD/MCB Switch Type A C-Char. 30 mA 3P+N | 16 A

Manufacturer: HAGER
Article no.: 20008458
EAN: 3250611020189
Manufacturer item number: ADZ366D
Manufacturer type: ADZ366D
Weight: 0,42 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Residual current circuit breaker 3X 1P+N 6kA C-16A 30mA Type A QuickConnect.

Residual current circuit breaker according to DIN EN 61009-1 (VDE 0664-20) with 3 x single-pole circuit breaker for 230 V AC circuits and residual current protection in a compact housing. QuickConnect terminal according to DIN EN 60898-1 (VDE 0641-11), up to 16 A on the output and up to 63 A on the input, blue test button and residual current indicator.

Simple individual removal from the phase busbar assembly. Suitable for retrofitting additional devices. Labelling option directly on the device.
Brand
HAGER
Breaking capacity in kA
3
Class
FI/LS switch
Configuration
4-pole
Division units
4 TE
Fault current in mA
30
Fault current type
Type A
Manufacturer item number
ADZ366D
Manufacturer type
ADZ366D
Positioning neutral wire
right
Rated current in A
16
