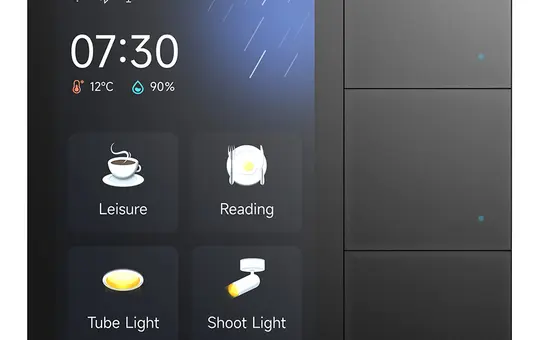

GVS CHTF-3.3/3.2.11 KNX Room Controller Smart Touch S3 | Triple-glazed, glass | black

Manufacturer: GVS
Article no.: 20070594
EAN: 4262503051163
Manufacturer item number: 503051163
Manufacturer type: CHTF-3.3/3.2.11
Weight: 0,194 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs

The KNX Smart Touch S3 is more than just an ordinary smart display. It combines innovative technology with elegant design and offers intuitive control for the modern home. The S3 can be freely connected to SIP door communication systems. With its versatile functions and seamless integration into existing systems, it sets new standards in home automation.


  • 3.2-inch touchscreen with three physical buttons for intuitive operation
  • Supports three interactive modes: touchscreen, physical buttons, and remote control via Bluetooth app
  • Compatible with standard flush-mounted boxes (68 mm diameter)
  • Integrated proximity sensor that activates the screen when approached and adjusts brightness
  • LED button illumination that automatically adapts to ambient light
  • Integration of KNX devices and SIP video intercoms for individual or group calls at the touch of a button
  • Elegant design that blends seamlessly into any interior

  • Product category: KNX push-button sensor
  • Manufacturer: GVS
  • Manufacturer type: CHTF-3.3/3.2.11
  • KNX standard: KNX-TP
  • Power consumption: 9 V - 36 V DC
  • Material: Glass
  • Colour: black
  • Lighting: LED button illumination that automatically adapts to ambient light
  • Operation: 3.2-inch touchscreen (IPS 480×320 pixels) and three physical buttons
  • Sensors: temperature, humidity, brightness, proximity
  • Interfaces: KNX-TP, power supply, Bluetooth, WLAN
  • Functions: KNX visualisation, SIP door communication, menu navigation, touch display, remote control via Bluetooth app, proximity sensor

The KNX Smart Touch S3 is a state-of-the-art smart display distinguished by its versatility and user-friendliness. With a 3.2-inch touchscreen and three physical buttons, it offers intuitive operation that appeals to both tech-savvy users and beginners.

A standout feature of the KNX Smart Touch S3 is its support for three different interaction modes. In addition to the touchscreen and physical buttons, you can also remotely control the device via a Bluetooth app. This opens up numerous usage possibilities, especially if you want to control your smart home remotely. Imagine sitting comfortably on the sofa and adjusting the lighting, regulating the heating, or closing the blinds with a simple tap on your smartphone.

The device is compatible with standard flush-mounted and concrete installation boxes, which significantly simplifies installation. Whether you live in a modern new build or an older building, the KNX Smart Touch S3 can be easily integrated. An integrated proximity sensor ensures that the screen automatically activates when you approach and adjusts the brightness to the ambient lighting. This is particularly practical when walking through your home at night and needing gentle lighting without being dazzled.

Another notable feature is the LED button illumination, which also automatically adapts to ambient light. This not only ensures comfortable operation under different lighting conditions but also contributes to energy efficiency. The integration of KNX devices and SIP video intercoms allows you to make individual or group calls at the touch of a button. Imagine expecting visitors and being able to communicate directly with the person at the door via the display without having to go to the door.

The elegant design of the KNX Smart Touch S3 fits seamlessly into any interior. Whether in a modern, minimalist living room or a classically furnished office – the device always looks stylish and unobtrusive. The high-quality workmanship and thoughtful design make it a real eye-catcher that is both functional and aesthetically pleasing. The premium feel meets the highest standards and conveys quality with every press on the matt glass buttons, while the display responds immediately, crisply, and absolutely smoothly to every touch. The self-explanatory menus with clearly recognisable visual elements promote quick understanding of operation.

In summary, the KNX Smart Touch S3 offers you a variety of functions that make your everyday life easier and take the smart home experience to a new level. The combination of touchscreen, physical buttons, and remote control via app allows flexible and comfortable operation. The simple installation and automatic adaptation to ambient lighting provide additional convenience. With the integration of KNX devices and SIP video intercoms, the device also offers a comprehensive solution for home automation. The elegant design completes the overall package and makes the KNX Smart Touch S3 an ideal choice for anyone looking to make their home smarter and more comfortable.


Customer Opinions on GVS

Customers using GVS sensors in the KNX system have mostly had positive experiences. Many users appreciate the reliability and accuracy of the sensors, especially the temperature and humidity sensors, which provide precise measurements and help optimise the indoor climate. A frequently mentioned advantage is the easy integration of GVS sensors into existing KNX systems, which simplifies installation and use.

Some users praise the flexible customisation of the sensors, such as the ability to individually adjust LED colours and brightness. This contributes to a better user experience and adaptation to personal preferences. The price-performance ratio is also highlighted positively, as the sensors offer an affordable yet high-quality solution compared to other brands.


GVS is a leading provider of KNX smart home and building automation solutions. For over 20 years, the company has been developing innovative products that impress with their high quality and reliability. GVS is known for its advanced technologies and the integration of style and functionality in its products. With a broad portfolio ranging from door intercom systems to complex smart home systems, GVS offers customised solutions for residential and commercial properties. GVS’s strength lies in continuous research and development, ensuring that its products are always state-of-the-art and meet the highest standards of safety and comfort.

Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Bluetooth
Yes
Brand
GVS
Casambi
No
Class
Touch sensors
CO2 sensor
No
Color temperature control
Yes
Colour
black
Customizable
No
DALI
No
ENOcean
No
fits in 55 switch range
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Humidity sensor
Yes
Infrared sensor
No
Installation location
Wall
Integrated actuator
No
Integrated binary input
No
Integrated room temperature controller
Yes
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
Label field
No
Manufacturer item number
503051163
Manufacturer type
CHTF-3.3/3.2.11
Manufacturer's colour
black
Material
Glass
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of buttons
3
Operating mode
push button | Touch
Proximity sensor
Yes
RGB lighting control
Yes
RGB status LED
Yes
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
SIP communication
Yes
Status LED, control light
Yes
suitable for installation in switch ranges
No
Surface
matt
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
Yes
Wiser Home
No
with display
Yes
with Netatmo
No
Zigbee
No
