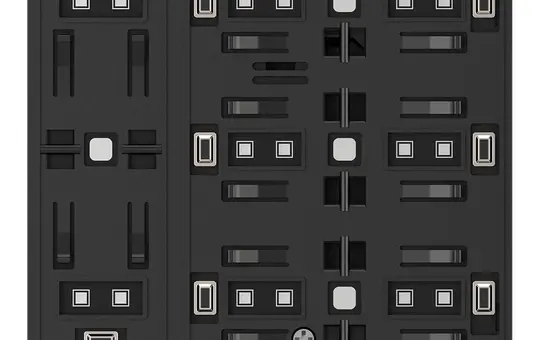

GVS CHPB-08/02.S.22 KNX touch sensor WALTZ Basis 4-fold | white/silver

GVS CHPB-08/02.S.22 KNX touch sensor WALTZ Basis | 4-fold | white/silver

Manufacturer: GVS
Article no.: 20070584
EAN: 4260688189268
Manufacturer item number: 88189268
Manufacturer type: CHPB-08/02.S.22
Weight: 0,024 kg
Available on request
Electrical appliance take-back
pcs
This KNX push-button sensor from the GVS WALTZ Basic Series is designed for classic wall operation in KNX installations and combines a minimalist appearance with clearly defined functions. With two to four buttons, integrated sensors, and KNX Secure, the device is suitable for residential and commercial buildings where reliable and straightforward operation is required.

  • 4-button KNX push-button sensor: Freely programmable buttons for switching, dimming, blinds, scenes, or value transmissions.
  • KNX Data Secure: Encrypted communication on the KNX bus for enhanced security in building automation.
  • Integrated temperature sensor: Measures the room temperature directly at the installation site and provides the value in the KNX system.
  • RGB status LEDs: Multicoloured LEDs per button for clear status and feedback indication.
  • Two binary inputs: Connection options for potential-free contacts or an external NTC temperature sensor.

Specifications
  • Bus technology: KNX TP with KNX Data Secure
  • Version: 4-button
  • Number of actuation points: 8
  • Binary inputs: 2 for potential-free contacts or NTC 10K
  • Power supply: 21 to 30 V DC via KNX bus
  • Bus current consumption: under 12.2 mA at 24 V DC
  • Mounting type: Flush-mounted in 60 mm device box
  • Dimensions: 86 x 86 x 33 mm
  • Colour: white/silver
  • Protection class: IP20

The GVS CHPB-08/02.S.22 is designed as a classic KNX push-button for wall mounting and covers typical control functions in smart homes and commercial buildings. The two buttons can be individually configured in the ETS and support functions such as switching, dimming, blind control, scene calls, or sending values. By supporting short and long button presses, multiple functions can be assigned per button without making operation unnecessarily complex.

The integrated temperature sensor allows the push-button to be used as a measuring point for heating, cooling, or ventilation functions in the KNX system. Additionally, two binary inputs are available, through which, for example, window contacts, push-buttons, or an external NTC temperature sensor can be connected. This allows the device's functionality to be extended without additional modules.

The RGB status LEDs serve as optical feedback for the user. Colour, brightness, and behaviour of the LEDs can be set in the ETS so that states such as on, off, activated scenes, or other operating conditions are clearly visible. Especially in installations without a display, this visual feedback is an important part of the operating logic.

With support for KNX Data Secure, the push-button sensor is also suitable for installations with increased data security requirements. The encrypted communication on the KNX bus can be activated project-specifically and is usable both in new secure projects and in mixed KNX installations.

Mounting is carried out in a standard flush-mounted box, and the dimensions correspond to the common KNX format. The surface in white/silver is deliberately simple and blends unobtrusively into modern residential and commercial areas. The device is intended for fixed wall installation and is fully commissioned via the ETS.

GVS Germany develops and produces KNX control elements and visualisation solutions for professional building automation. The focus is on clear functionality, reliable ETS integration, and a consistent design language. The WALTZ series is designed as a continuous operating concept for push-button sensors, touch panels, and room controllers.
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Bluetooth
No
Brand
GVS
Casambi
No
Class
Touch sensors
CO2 sensor
No
Color temperature control
Yes
Colour
silver
Customizable
No
DALI
No
ENOcean
No
fits in 55 switch range
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Humidity sensor
No
Infrared sensor
No
Installation location
Wall
Integrated actuator
No
Integrated binary input
No
Integrated room temperature controller
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
Label field
No
Manufacturer item number
88189268
Manufacturer type
CHPB-08/02.S.22
Manufacturer's colour
white/silver
Material
aluminum
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted | cavity wall
Number of binary inputs
2
Number of buttons
8
Operating mode
push button
Protection class (IP)
IP20
Proximity sensor
No
RGB lighting control
No
RGB status LED
Yes
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
SIP communication
No
Status LED, control light
Yes
suitable for installation in switch ranges
No
Surface
matt
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with display
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
GVS
GVS Deutschland GmbH & Co. KG
Westumer Str. 53
53489  Sinzig
DE

info@gvs-deutschland.de
gvssmart.de/
