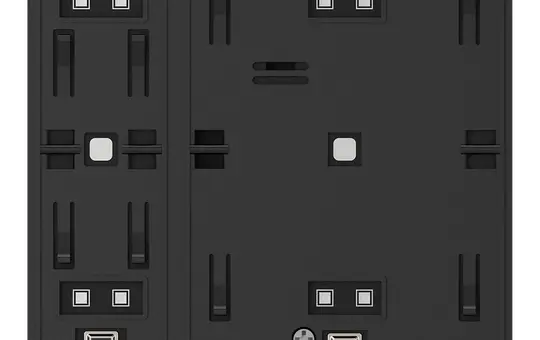

GVS CHPB-04/02.S.22 KNX Touch Sensor WALTZ Base 2-fold | white/silver

GVS CHPB-04/02.S.22 KNX Touch Sensor WALTZ Base | 2-fold | white/silver

Manufacturer: GVS
Article no.: 20070578
EAN: 4260688189206
Manufacturer item number: 88189206
Manufacturer type: CHPB-04/02.S.22
Weight: 0,025 kg
Available on request
Electrical appliance take-back
pcs
This KNX push-button sensor from the GVS WALTZ Basic series is designed for classic wall operation in KNX installations and combines a minimalist look with clearly defined functions. With two to four buttons, integrated sensors, and KNX Secure, the device is suitable for residential and commercial buildings where reliable and straightforward operation is required.

  • 2-gang KNX push-button sensor: Freely configurable buttons for switching, dimming, blinds, scenes, or value transmissions.
  • KNX Data Secure: Encrypted communication on the KNX bus for increased security in building automation.
  • Integrated temperature sensor: Measures the room temperature directly at the installation site and provides the value within the KNX system.
  • RGB status LEDs: Multicoloured LEDs per button for clear status and feedback indication.
  • Two binary inputs: Connection options for potential-free contacts or an external NTC temperature sensor.

Specifications
  • Bus technology: KNX TP with KNX Data Secure
  • Version: 2-gang
  • Number of actuation points: 2
  • Binary inputs: 2 for potential-free contacts or NTC 10K
  • Power supply: 21 to 30 V DC via KNX bus
  • Bus current consumption: under 12.2 mA at 24 V DC
  • Mounting type: Flush-mounted in 60 mm device box
  • Dimensions: 86 x 86 x 33 mm
  • Colour: white/silver
  • Protection rating: IP20

The GVS CHPB-04/02.S.22 is designed as a classic KNX push-button for wall mounting and covers typical control functions in smart homes and commercial buildings. The two buttons can be individually configured in ETS and support functions such as switching, dimming, blind control, scene calls, or sending values. By supporting short and long button presses, multiple functions can be assigned per button without making operation unnecessarily complex.

The integrated temperature sensor allows the push-button to be used as a measurement point for heating, cooling, or ventilation functions within the KNX system. Additionally, two binary inputs are available, allowing connection of window contacts, push-buttons, or an external NTC temperature sensor. This extends the device's functionality without additional modules.

The RGB status LEDs provide optical feedback for the user. The colour, brightness, and behaviour of the LEDs can be set in ETS, so states such as on, off, activated scenes, or other operating conditions are clearly visible. This visual feedback is an important part of the control logic, especially in installations without a display.

With support for KNX Data Secure, the push-button sensor is also suitable for installations with higher data security requirements. The encrypted communication on the KNX bus can be project-specifically activated and is usable in both new secure projects and mixed KNX installations.

Mounting is done in a standard flush-mounted box, with dimensions corresponding to the common KNX format. The white/silver surface is deliberately simple and unobtrusively fits into modern residential and commercial environments. The device is intended for fixed wall installation and is fully commissioned via ETS.

GVS Germany develops and produces KNX control elements and visualisation solutions for professional building automation. The focus is on clear functionality, reliable ETS integration, and a consistent design language. The WALTZ series is designed as a continuous operating concept for push-button sensors, touch panels, and room controllers.
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Brand
GVS
Casambi
No
CO2 sensor
No
DALI
No
ENOcean
No
fits in 55 switch range
No
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
JUNG HOME
No
KNX-RF
No
KNX-Secure
Yes
Label field
No
Manufacturer item number
88189206
Manufacturer type
CHPB-04/02.S.22
Manufacturer's colour
white/silver
Manufacturer's Description
WALTZ Tastsensor+, 2-fach, Basis, Aluminium Silber, für Wippen in Silber oder Weiß, KNX Data Secure – CHPB-04/02.S.22
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Number of buttons
2
Operating mode
push button
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
suitable for installation in switch ranges
No
Theben LUXORliving
No
Thread
No
Wi-Fi
No
Wiser Home
No
with display
No
with Netatmo
No
Zigbee
No
