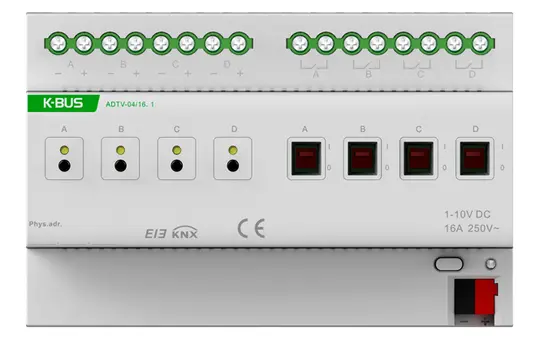

GVS 635560 KNX dimming actuator 1-10 V 4-fold

GVS 635560 KNX dimming actuator 1-10 V | 4-fold

Manufacturer: GVS
Article no.: 20002078
EAN: 0634949971192
Manufacturer item number: 635560
Manufacturer type: ADTV-04/16.1
Weight: 0,45 kg
Available on request
168,93 €
incl. VAT + shipping
pcs
The GVS 4-way 1-10V dimming actuator is suitable for connection to electronic ballasts or other devices with a 1-10V DC interface. It enables switching, dimming, and executing functions such as scenes, etc. Up to 30 electronic ballasts can be connected. The input voltage is 230V. It is mounted on a DIN rail in multi-phase configuration. ETS (version 3.0d or higher) is required for configuration and commissioning. Product features: - Switching and dimming - Support for absolute and relative dimming - Status/error reporting - 15 lighting scenes - Staircase lighting function - Preset function. Technical specifications: Power supply: 21-30 V via bus, operating load: <12 mA, power consumption: max. 360 mW, outputs: 4 channels switching/dimming, input voltage: 100-140 V AC, output voltage: 0-10 V DC, max. 100 mA. Mounting: 35 mm DIN rail, storage/transport temperature: -5°C to +45°C during operation, -25°C to +55°C during storage, -25°C to +70°C during transport.
Brand
GVS
Color control
-
Connection type CC
-
DALI Device Type
-
Different bus system
-
Dimming
Yes
Dimming method
1-10 V
Division units
8
KNX-TP
Yes
Local/manual operation
Yes
Manufacturer item number
635560
Manufacturer type
ADTV-04/16.1
Mounting type
Series installation
Number of outputs
4
old Voltus number
1506769
Rated voltage outputs
1 - 10V DC
Type of transmission
Cable
Manufacturer information
GVS
GVS Deutschland GmbH & Co. KG
Westumer Str. 53
53489  Sinzig
DE

info@gvs-deutschland.de
gvssmart.de/
