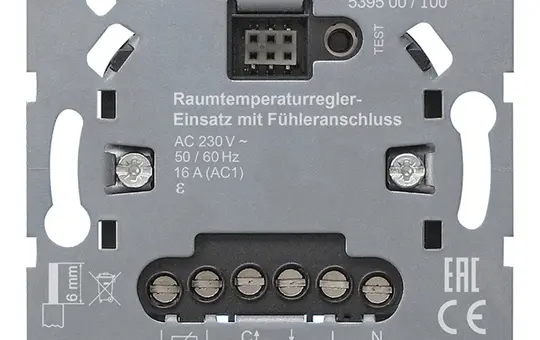

GIRA 539500 room temperature controller S3000 | 230 V, sensor connection

Manufacturer: GIRA

Article no.: 20026634

EAN: 4010337036128

Manufacturer item number: 539500

Manufacturer type: 539500

Weight: 0,1122 kg

In stock

Delivery: 2-3 business days

68,15 €

incl. VAT + shipping

pcs

System 3000 room temperature controller insert with sensor connection. Features: Switching of electric underfloor heating and thermal actuators. Output signal: Pulse width modulation (PWM) or two-point control (on/off). Input for switching to cooling mode. Interrupts the heating process after 60 minutes (overheating protection of a heating device). Connection of a remote sensor (accessory) is possible. Combination with RF operating top unit 1-way or 2-way for KNX: 1-way heating actuator, 1-way or 2-way sensor channel. Local control of the System 3000 insert is possible. Radio control of other KNX devices as sensors is possible. Temperature detection. Function selection of the insert for room temperature controller: Control of 230 V actuators, heating, cooling mode, heating and cooling mode, switching between heating and cooling mode via communication object or extension input. PWM and 2-point controller, absolute and relative setpoint specification, heat demand control incl.

Brand: GIRA
Class: Temperature controller
Configuration: Resistance sensor
Connection: -
Contact type: Closer
Function type: Heating | Cool
Manufacturer item number: 539500
Manufacturer type: 539500
old Voltus number: 1699457
Operating mode: Button
Power supply: 230V AC
Series: ClassiX | E1 | E2 | E3 | Esprit | Event | Standard 55 | Studio

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Deeplink

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: GIRA
Class: Temperature controller
Configuration: Resistance sensor
Connection: -
Contact type: Closer
Function type: Heating | Cool
Manufacturer item number: 539500
Manufacturer type: 539500
old Voltus number: 1699457
Operating mode: Button
Power supply: 230V AC
Series: ClassiX | E1 | E2 | E3 | Esprit | Event | Standard 55 | Studio
