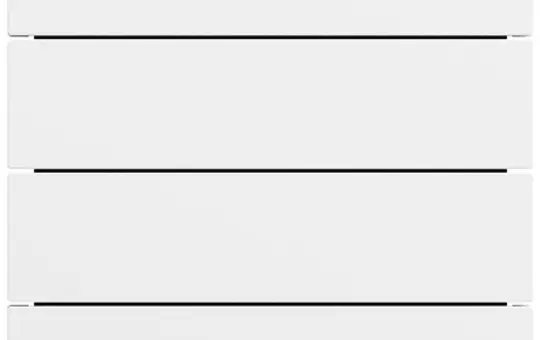

GIRA 534400 KNX Touch Sensor 4.70 | 4-gang, Gira One

Manufacturer: GIRA

Article no.: 20096170

EAN: 4010337128779

Manufacturer item number: 534400

Manufacturer type: 534400

Weight: 0,114 kg

In stock

Delivery: 2-3 business days

pcs

Touch sensor 4.70 Comfort 4-gang for Gira One and KNX System 70, with commissioning rocker

Features:

Touch sensor with integrated bus coupler and the option to connect a wired remote sensor.
Integrated temperature sensor.
Functions: Switching, dimming of brightness and colour temperature, colour control, blinds, value transmitter, scene substation, 2-channel operation and controller substation.
Switching: Response when pressing and/or releasing, switching on, switching off, toggling.
Dimming of brightness and colour temperature: Times for short and long actuation, dimming in various stages, telegram repetition during long actuation, sending a stop telegram at the end of actuation.
Colour control: Type of colour control, colour space and colour values are adjustable. The command when pressing, the time between switching and colour cycle / brightness adjustment, the start value and the step size of the adjustment as well as the telegram repetition during long actuation are adjustable.
Blinds: The command when pressing and the operating concept are adjustable. The operating concept can be adapted in the times for short and long actuation and louvre adjustment.
Value transmitter: The mode of operation (1 byte, 2 byte, 3 byte or 6 byte value transmitter) and the value are adjustable.
Switching through scenes / dimming scene participants. Visualisation of the scene via LED colour.
Scene function: Internal storage of up to eight scenes with eight output channels.
2-channel operation: Up to two telegrams can be sent to the KNX bus by pressing a button. The operating concept can be set and the time for short and long actuation adjusted. The mode of operation of the channels can be set separately.
Controller substation: The mode of operation (operating mode switching, forced operating mode switching, presence function and setpoint shift) is adjustable.
Lock function to lock individual buttons or rockers.
4-stage limit value function for indoor air quality VOC, IAQ, eCO₂.

Controller substation properties

The controller substation can be parameterised as a function of a rocker or button. Control of a room temperature controller (operating modes, presence function and setpoint shift).
Evaluation of the controller status via the status LED.
Temperature measurement can be activated. Measurement of room temperature with internal sensor or optionally by forming a measured value from the internally measured temperature and an external temperature.

Functions of the status LED

The function selection is made per status LED. The following functions are parameterisable: always OFF, always ON, actuation display, telegram acknowledgement, status display, control via separate LED object, operating mode display, controller status display, presence status display and setpoint shift display.
Colour is adjustable. The colour selection is made either jointly for all status LEDs or separately for each status LED of the device. The status LEDs can optionally shine red, green, blue, yellow, cyan, orange, violet or white.
The brightness of the status LED is adjustable in six levels. With night dimming, the brightness of the status LED can be reduced during night hours via communication object.
Additionally, an overlaid function can be enabled for each status LED, allowing a different colour and display type to be set.
LED alarm message: All LEDs of the touch sensor can flash red simultaneously in case of an alarm message.
LED orientation lighting: For orientation, all LEDs can be permanently switched off or on, display the status of a separate communication object (ON, OFF, flashing) or be switched on by any button press and automatically switched off again after a delay time.
LED - traffic light function for indoor air quality (VOC).

General functions

Lock function to lock individual buttons or rockers.

Notes:

KNX Data Secure compatible.
Upgradeable.
Professional labelling via the Gira labelling service www.beschriftung.gira.de.
The touch sensor can be installed horizontally (installation position "normal") or vertically (installation position "rotated -90°").

Scope of delivery:

Connection and branch terminal for KNX included in the scope of delivery.
Mounting ring with screws included in the scope of delivery.
The touch sensor is delivered with a programme-neutral commissioning rocker. The matching rocker set for the switch programme must be ordered separately.

BAB-Tec: No
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Touch sensors
CO2 sensor: No
Color temperature control: Yes
DALI: No
ENOcean: No
fits in 55 switch range: No
free@home: No
Gira One: Yes
Google Assistant: No
Hager KNXeasy: No
Humidity sensor: No
Installation location: Wall
Integrated actuator: No
Integrated room temperature controller: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: No
Label field: No
Manufacturer item number: 534400
Manufacturer type: 534400
Material: Plastic
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of actuation points: 8
Number of buttons: 4
Operating mode: push button
Proximity sensor: No
Samsung SmartThings: No
Shelly: No
Siemens LOGO!: No
SIP communication: No
Status LED, control light: Yes
suitable for installation in switch ranges: Yes
Temperature sensor: Yes
Theben LUXORliving: No
Thread: No
VOC sensor: No
Wiser Home: No
with display: No
with Netatmo: No
