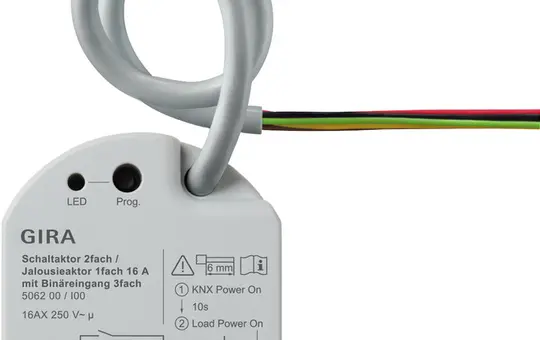

GIRA 506200 KNX blind actuator with binary inputs | 1-fold, 3 inputs

Manufacturer: GIRA

Article no.: 20033118

EAN: 4010337099253

Manufacturer item number: 506200

Manufacturer type: 506200

Weight: 0,102 kg

In stock

Delivery: 2-3 business days

pcs

Switch actuator 2-gang Blind actuator 1-gang 16 A with 3-gang binary input for Gira One and KNX flush-mounted

Features:

Inputs:

Inputs 1 and 2 act depending on the ETS parameterisation in the application for switches, push-buttons or contacts either internally on the relay output or separately on the KNX. Input 3 always acts on the KNX.

Functions for the inputs when acting on the KNX (switching, dimming, blinds, value transmitter, scene extension, 2-channel operation, controller extension, no function).

Switching: Command configurable when closing and opening the contact (no reaction, ON, OFF, TOGGLE).

Dimming: Dimming of brightness and/or colour temperature. Command when closing the contact, time between switching and dimming, dimming in different stages, telegram repetition with long signal at the input and sending a stop telegram at the end of the dimming process configurable.

Blinds: Command when closing the contact and operating concept configurable.

BAB-Tec: No
Binary inputs integrated: Yes
Blinds: No
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Blind actuators
DALI: No
Dimming: No
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: No
Manufacturer item number: 506200
Manufacturer type: 506200
Matter: No
max. switching power in W: 3000
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of outputs: 1
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
SMI control: No
Sun position calculation: No
Theben LUXORliving: No
Thread: No
Travel time measurement: No
Type of transmission: Cable
Ventilation function: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Deeplink

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

BAB-Tec: No
Binary inputs integrated: Yes
Blinds: No
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Blind actuators
DALI: No
Dimming: No
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: No
Manufacturer item number: 506200
Manufacturer type: 506200
Matter: No
max. switching power in W: 3000
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of outputs: 1
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
SMI control: No
Sun position calculation: No
Theben LUXORliving: No
Thread: No
Travel time measurement: No
Type of transmission: Cable
Ventilation function: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
