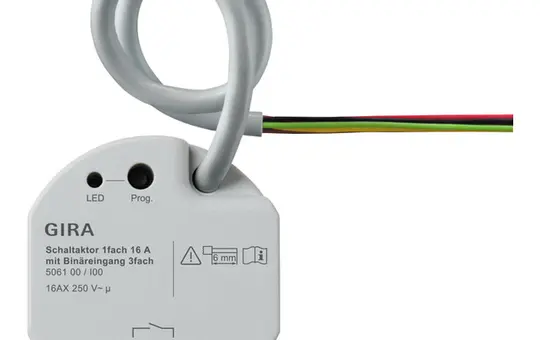

GIRA 506100 KNX switching actuator with binary inputs | 1-fold, 3 inputs

Manufacturer: GIRA

Article no.: 20026511

EAN: 4010337099284

Manufacturer item number: 506100

Manufacturer type: 506100

Weight: 0,08 kg

In stock

Delivery: 2-3 business days

77,83 €

incl. VAT + shipping

pcs

1-way 16 A switching actuator with 3-way binary input for Gira One and KNX flush-mounted Features: Inputs: Depending on the ETS parameterization in the application for switches, buttons or contacts, inputs 1 and 2 act either internally on the relay output or separately on the KNX. Input 3 always acts on the KNX. Functions for the inputs when acting on the KNX (switching, dimming, blinds, value transmitter, scene extension, 2-channel operation, controller extension, no function). Switching: Command when closing and opening the contact can be set (no reaction, ON, OFF, TOGGLE). Dimming: Dimming of brightness and/or color temperature. Command when closing the contact, time between switching and dimming, dimming in different levels, telegram repetition with a long signal at the input and sending of a stop telegram at the end of the dimming process can be configured. Blinds: Command when closing the contact and operating concept can be parameterized.

Binary inputs integrated: Yes
Brand: GIRA
Capacitive load in µF: 140
Class: switching actuators
DALI Device Type: -
DALI-Standard: -
Different bus system: -
Division units: -
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 506100
Manufacturer type: 506100
max. switching current in A: 16.00
Mounting type: flush-mounted
Number of binary inputs: 3
Number of outputs: 1
old Voltus number: 1700848
Rated voltage outputs: 230V AC
suitable for C load: Yes
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Produktdatenblatt

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Binary inputs integrated: Yes
Brand: GIRA
Capacitive load in µF: 140
Class: switching actuators
DALI Device Type: -
DALI-Standard: -
Different bus system: -
Division units: -
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 506100
Manufacturer type: 506100
max. switching current in A: 16.00
Mounting type: flush-mounted
Number of binary inputs: 3
Number of outputs: 1
old Voltus number: 1700848
Rated voltage outputs: 230V AC
suitable for C load: Yes
Type of transmission: Cable
