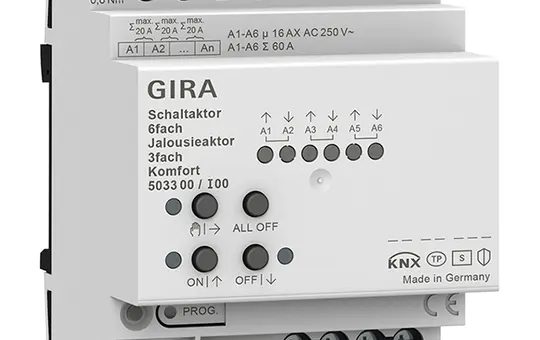

GIRA 503300 KNX Universal Actuator | 6-fold, comfort

Manufacturer: GIRA

Article no.: 20026399

EAN: 4010337061090

Manufacturer item number: 503300

Manufacturer type: 503300

Weight: 0,293 kg

In stock

Delivery: 2-3 business days

pcs

Switch actuator 6-fold 16 A Shutter actuator 3-fold 16 A Comfort for KNX REG plus

New: Extended functionality. Existing devices can be updated via a software upgrade. Depending on the parameterisation, the actuator can be used as a switch actuator or as a shutter actuator. Mixed forms of switch and shutter actuators are also possible. For the shutter actuator function, two adjacent relay outputs are combined into one shutter output.

Features:

Switch or shutter operation parameterisable.

In shutter operation, the adjacent outputs (A1 A2, A3 A4...) are combined into one shutter output.

Mixed operation on one actuator (e.g. A1 & A2 shutter, A3 & A4 shutter, A5 switching, A6 switching...) possible.

Up to 8 independent logic functions for implementing simple or complex logical operations.

Active sending of feedback or status messages can be globally delayed after bus voltage recovery or after an ETS programming process.

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Universal actuators
DALI: No
Different phases can be connected: Yes
Dimming: No
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 503300
Manufacturer type: 503300
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of blind outputs: 3
Number of outputs: 6
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: No
Switch: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Deeplink

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Switch or shutter operation parameterisable.

In shutter operation, the adjacent outputs (A1 A2, A3 A4...) are combined into one shutter output.

Mixed operation on one actuator (e.g. A1 & A2 shutter, A3 & A4 shutter, A5 switching, A6 switching...) possible.

Up to 8 independent logic functions for implementing simple or complex logical operations.

Active sending of feedback or status messages can be globally delayed after bus voltage recovery or after an ETS programming process.

Specifications

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Universal actuators
DALI: No
Different phases can be connected: Yes
Dimming: No
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 503300
Manufacturer type: 503300
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of blind outputs: 3
Number of outputs: 6
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: No
Switch: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

Documents
