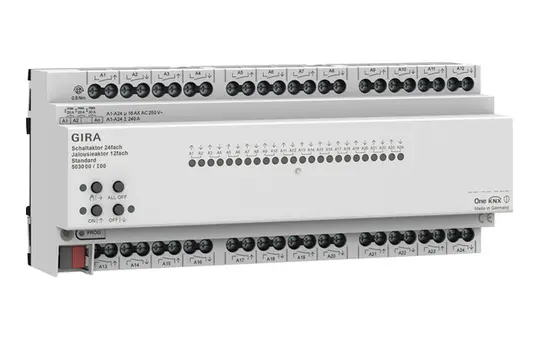

GIRA 503000 KNX Universal Actuator | 24-fold, standard

Manufacturer: GIRA

Article no.: 20026398

EAN: 4010337060987

Manufacturer item number: 503000

Manufacturer type: 503000

Weight: 0,842 kg

In stock

Delivery: 2-3 business days

pcs

Switch actuator 24-fold 16 A Blind actuator 12-fold 16 A Standard for Gira One and KNX REG plus New: Extended functionality. Existing devices can be updated via a software upgrade. Depending on the parameterisation, the actuator can be used as a switch actuator or as a blind actuator. Mixed forms of switch and blind actuators are also possible. For the blind actuator function, two adjacent relay outputs are combined into one blind output. Features: Blind or switch operation parameterisable. In blind operation, the adjacent outputs (A1 A2, A3 A4...) are combined into one blind output each. Mixed operation on one actuator (e.g. A1 & A2 blind, A3 & A4 blind, A5 switch, A6 switch...) possible. Actively sending feedback or status messages can be globally delayed after bus voltage return or after an ETS programming process. Manual operation of the outputs independent of KNX with intelligent LED status indicators for energy saving.

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Universal actuators
DALI: No
Different phases can be connected: Yes
Dimming: No
Division units: 12 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: Yes
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 503000
Manufacturer type: 503000
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of blind outputs: 12
Number of outputs: 24
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: No
Switch: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink

Data Sheet

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
