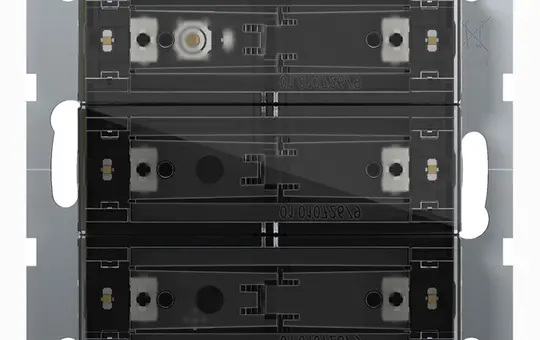

GIRA 501300 KNX Push Sensor 4 System 55 | 3-fold, standard

Manufacturer: GIRA

Article no.: 20026835

EAN: 4010337110835

Manufacturer item number: 501300

Manufacturer type: 501300

Weight: 0,099 kg

In stock

Delivery: 2-3 business days

pcs

Touch sensor 4 Standard triple for KNX System 55, with commissioning rocker

Features:

Touch sensor with integrated bus coupler.
Integrated temperature sensor.
The touch sensor is to be completed with rocker sets to be ordered separately. Three rocker set variants are available: rocker sets without labelling option, with labelling field, or individually laser-engraved rockers.
The touch sensor can be installed horizontally (installation position "normal") or vertically (installation position "rotated -90 degrees").
Rocker or button function adjustable for each control surface.
Tactile feedback when pressing the button.

Functions:

Switching, dimming of brightness and colour temperature, colour control, blinds, value transmitter, scene auxiliary unit, 2-channel operation, and regulator auxiliary unit.
Switching: response on pressing and/or releasing, switching on, switching off, toggling.

BAB-Tec: No
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Touch sensors
CO2 sensor: No
Color temperature control: Yes
Customizable: No
DALI: No
ENOcean: No
fits in 55 switch range: Yes
free@home: No
Gira One: No
Hager KNXeasy: No
Humidity sensor: No
Infrared sensor: No
Installation location: Wall
Integrated actuator: No
Integrated binary input: No
Integrated room temperature controller: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Label field: No
Manufacturer item number: 501300
Manufacturer type: 501300
Material: Plastic
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of buttons: 3
Operating mode: push button
Protection class (IP): IP21
Proximity sensor: No
RGB lighting control: Yes
RGB status LED: Yes
Shelly: No
Siemens LOGO!: No
Status LED, control light: Yes
suitable for installation in switch ranges: Yes
Surface: matt
Temperature sensor: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
VOC sensor: No
Wi-Fi: No
Wiser Home: No
with display: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
