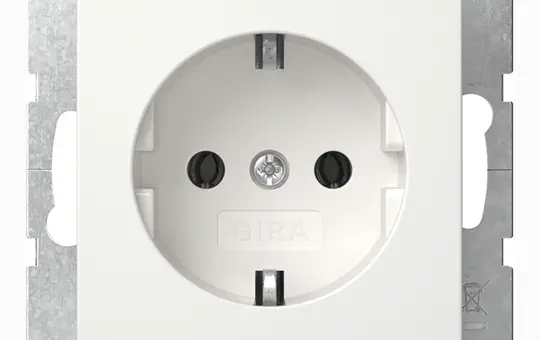

GIRA 418803 SCHUKO socket System 55 | standard | pure white shiny

Manufacturer: GIRA

Article no.: 20046810

EAN: 4010337092896

Manufacturer item number: 418803

Manufacturer type: 418803

Weight: 0,074 kg

In stock

Delivery: 2-3 business days

pcs

The GIRA SCHUKO socket System 55 impresses with a design focused on simple and time-saving installation as well as a compact construction that allows flexible applications in a variety of installation environments.

Quick fastening: Enables a time-saving and clean installation with approximately 3.5 turns per fastening claw.
Grounded steel support ring: Corrosion-resistant support ring is grounded in conjunction with fastening claw and claw screws for increased electrical safety.
Ergonomic release levers: Large, ergonomically shaped levers facilitate assembly and disassembly.
Patented keyhole arrangement: Simplified fastening using flush-mounted screws thanks to large keyhole profiles.
Low installation depth: Only 32 mm installation depth allows fitting in shallow flush-mounted boxes.
Universal connection options: Connection of rigid and flexible conductors with cross-sections from 1.5 to 2.5 mm² is possible.
Stable grounding clip: With solid grounding fingers and tested increased contact pressure according to T.N.O. for reliable grounding.
Break-resistant thermoplastic base: Ensures mechanical stability and durability of the socket.

The GIRA 418803 SCHUKO socket System 55 is a socket that can be integrated into the modular Gira System 55, finished in pure white gloss, designed for a nominal voltage of 250 V~ and a nominal current of 16 A. It allows connection of rigid and flexible conductors with cross-sections from 1.5 mm² to 2.5 mm². Installation is carried out via quick fastening, which permits a time-saving and clean installation with about 3.5 turns per fastening claw. The base is made of break-resistant thermoplastic, while the steel support ring is corrosion-resistant and grounded together with the fastening claws and claw screws. The socket features enclosed spread claws and a patented arrangement of large keyhole profiles that enable simplified fastening using flush-mounted screws. The installation depth is only 32 mm, allowing installation even in shallow flush-mounted boxes. Large, ergonomically shaped release levers facilitate handling during assembly and disassembly. The stable grounding clip with solid grounding fingers provides increased contact pressure, tested according to T.N.O., thus ensuring a reliable grounding connection. The socket is exclusively usable within the Gira System 55 and can be combined with the frame series offered there such as ClassiX, E1, E2, E3, Esprit, Event, Standard 55, and Studio, allowing flexible design of switch and socket combinations. Compared to similar products, it stands out due to the combination of quick fastening, robust and grounded steel support ring, and the patented keyhole arrangement, which significantly simplifies and speeds up installation.

Technically relevant features include the universal connection options for conductors from 1.5 mm² to 2.5 mm², the ergonomic design of the release levers to facilitate maintenance, and the low installation depth of 32 mm. The construction from break-resistant thermoplastic and corrosion-resistant steel support ring ensures lasting mechanical stability. The socket is suitable for use in residential and commercial installations where compliant and installation-friendly power supply is required.

Brand: GIRA
Class: Sockets
Colour: white
Configuration: SCHUKO (Type F)
Hinged lid: No
Label field: No
Lettering: without
Lockable: No
Manufacturer item number: 418803
Manufacturer type: 418803
Manufacturer's colour: pure white
Orientation light: No
Rated current in A: 16
Series: ClassiX | E1 | E2 | E3 | Esprit | Event | Standard 55 | Studio
Signal lamp: No
Surface: glossy
USB-A: No
USB-C: No
with increased contact protection: No
