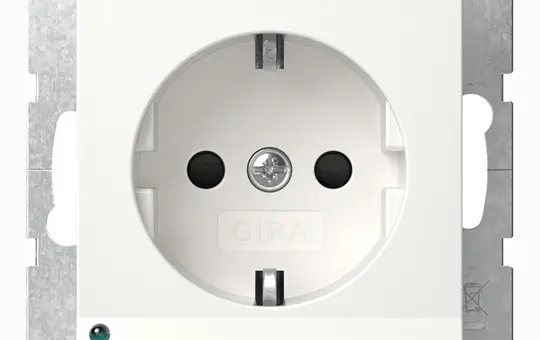

GIRA 417003 SCHUKO socket system 55 Orientation light, contact protection | pure white shiny

GIRA 417003 SCHUKO socket system 55 | Orientation light, contact protection | pure white shiny

Manufacturer: GIRA
Article no.: 20046808
EAN: 4010337094722
Manufacturer item number: 417003
Manufacturer type: 417003
Weight: 0,1166 kg
In stock
Delivery: 2-3 business days
41,82 €
incl. VAT + shipping
pcs
- SCHUKO socket with recessed light strip
- the white LEDs cast a light corridor downwards. This creates indirect orientation lighting that does not cause annoying glare, even in bedrooms
- the integrated twilight sensor automatically switches the LED light on at dusk and off again when there is sufficient light
- the LED light is completely integrated into the cover and separate connection is not necessary

Technical data:
Operation: 0.25 W / 0.35 VA / 1.5 mA
Standby: 0.175 W / 0.25 VA / 1.0 mA
Luminous intensity: 0.2 cd
Installation depth for the new generation: 29 mm
Connection cross-section for conductors from: 1.5 mm² to 2.5 mm²
Ambient temperature shutter: -15 °C to +40 °C

Notes:
Increased contact protection (Safety Plus) in accordance with DIN VDE 0620-1.
Brand
GIRA
Class
Sockets
Color
white
Configuration
SCHUKO (Type F)
Lettering
without
Manufacturer item number
417003
Manufacturer type
417003
Manufacturer's color
reinweiß
old Voltus number
1703793
Orientation light
Yes
Rated current in A
16.00
Series
ClassiX | E1 | E2 | E3 | Esprit | Event | Standard 55 | Studio
Signal lamp
Yes
Surface
glänzend
with increased contact protection
Yes

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt
Manufacturer information
GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/
