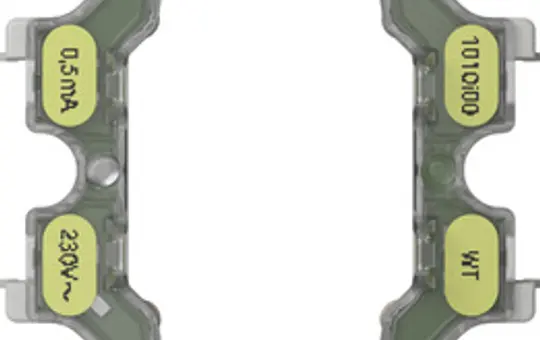

GIRA 3791010 LED lighting element | Option 1, 230 V | white

Manufacturer: GIRA

Article no.: 20047823

EAN: 4010337110361

Manufacturer item number: 3791010

Manufacturer type: 3791010

Weight: 0,026 kg

Available on request

pcs

LED lighting elements from Gira: What you should know before installation

LED lighting elements are a practical addition to many Gira switch inserts. They provide better orientation in the dark and can also indicate whether a device is currently active – for example, a light or a socket. However, for these functions to work reliably, certain requirements must be met. Here you will learn what you should pay attention to.

Two functions – different requirements

Gira LED elements can basically do two things:

Illuminate: The LED lights up independently of the switching state, e.g. permanently or in the dark. This is especially helpful in corridors, staircases, or work areas.
Indicate: The LED shows the switching state of a connected device – i.e. whether the light is switched on, for example.

Which function can actually be used depends on the switch insert and the wiring.

Requirement: The right switch insert

Not every switch insert is suitable for every function. The most important points:

Neutral terminal present? For the indication function, the switch insert must have a neutral conductor terminal. Without this, only illumination is possible.
Signalling contact for push-buttons? Push-buttons require a separate signalling contact so that the LED can indicate the switching state. Without this, no indication function is possible.
Rocker with control window? To make the LED visible, the rocker used must have a control window. With inserts without a window, the LED is active but not visible.
Power supply to consider Gira offers LED elements for 230 V~ and for low voltage (12–30 V~). The choice depends on the system used – e.g. with KNX or other low-voltage installations.

Installation and function: What you should consider

Insertion direction determines the function The LED elements can have different effects depending on the insertion direction (0° or 180°) – e.g. as an indication or illumination element. The exact function depends on the type and connection.
Not every insert supports LED elements Some switch inserts – e.g. rocker push-buttons without signalling contact – are not suitable for LED elements. Neither illumination nor indication works here.
Series switches require a special LED variant There is a specific LED version for series switches, as two circuits are controlled independently here.

Overview: Which LED variant fits which insert?

To help you quickly find out which LED element fits your switch insert, we have created a clear table. It shows for each GIRA type whether and how the LED elements can be used for indication function and illumination at 230 V~ and 12–30 V~.

Switch insert (GIRA type)	230 V~ Indication	230 V~ Illumination	12–30 V~ Indication	12–30 V~ Illumination
310600 / 381600 – Rocker switch	–	Variant 1	–	Variant 4
31063x – Surface-mounted rocker switch	–	Variant 1	–	Variant 4
317600 – Rocker switch 16 AX	–	Variant 1	–	Variant 4
312600 / 383600 – Push-button switch	–	Variant 1	–	Variant 4
312700 / 383700 – Intermediate switch (push-button)	–	Variant 1	–	Variant 4
310700 / 381700 – Intermediate switch (rocker)	–	Variant 1	–	Variant 4
31073x – Surface-mounted intermediate switch	–	Variant 1	–	Variant 4
310200 / 381200 – Double-pole switch	Variant 1	Variant 1	Variant 4	Variant 4
31023x – Surface-mounted double-pole switch	Variant 1	Variant 1	Variant 4	Variant 4
311600 / 382600 – Rocker control switch	Variant 2	Variant 1	Variant 5	Variant 4
31163x / 31161x – Surface-mounted rocker control switch	Variant 2	Variant 1	Variant 5	Variant 4
318600 – Rocker control switch 16 AX	Variant 2	Variant 1	Variant 5	Variant 4
318630 – Surface-mounted rocker control switch 16 AX	Variant 2	Variant 1	Variant 5	Variant 4
313600 – Push-button control switch	Variant 2	Variant 1	Variant 5	Variant 4
313500 / 384500 – Series push-button control switch	Variant 3	–	–	–
311500 / 382500 – Series rocker control switch	Variant 3	–	–	–
311200 / 382200 – Rocker control switch 2-pole	Variant 1	Variant 1	Variant 4	Variant 4
31123x – Surface-mounted rocker control switch 2-pole	Variant 1	Variant 1	Variant 4	Variant 4
312200 / 384200 – Push-button control switch 2-pole	Variant 1	Variant 1	Variant 4	Variant 4
315100 / 387100 – Rocker push-button (without signalling contact)	–	Variant 2	–	Variant 5
315600 / 387600 – Rocker push-button changeover switch (without signalling contact)	–	Variant 2	–	Variant 5
31563x / 31561x – Surface-mounted rocker push-button changeover switch	–	Variant 2	–	Variant 5
315000 / 387000 – Rocker push-button with neutral terminal	–	Variant 1	–	Variant 4
315200 / 387200 – Rocker push-button with signalling contact	Variant 2	Variant 2	Variant 5	Variant 5
31523x – Surface-mounted rocker push-button with signalling contact	Variant 2	Variant 2	Variant 5	Variant 5

Brand: GIRA
Class: Switch rockers
Colour: white
Manufacturer item number: 3791010
Manufacturer type: 3791010
Manufacturer's colour: white

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Illuminate: The LED lights up independently of the switching state, e.g. permanently or in the dark. This is especially helpful in corridors, staircases, or work areas.
Indicate: The LED shows the switching state of a connected device – i.e. whether the light is switched on, for example.

Neutral terminal present? For the indication function, the switch insert must have a neutral conductor terminal. Without this, only illumination is possible.
Signalling contact for push-buttons? Push-buttons require a separate signalling contact so that the LED can indicate the switching state. Without this, no indication function is possible.
Rocker with control window? To make the LED visible, the rocker used must have a control window. With inserts without a window, the LED is active but not visible.
Power supply to consider Gira offers LED elements for 230 V~ and for low voltage (12–30 V~). The choice depends on the system used – e.g. with KNX or other low-voltage installations.

Installation and function: What you should consider

Insertion direction determines the function The LED elements can have different effects depending on the insertion direction (0° or 180°) – e.g. as an indication or illumination element. The exact function depends on the type and connection.
Not every insert supports LED elements Some switch inserts – e.g. rocker push-buttons without signalling contact – are not suitable for LED elements. Neither illumination nor indication works here.
Series switches require a special LED variant There is a specific LED version for series switches, as two circuits are controlled independently here.

Switch insert (GIRA type)	230 V~ Indication	230 V~ Illumination	12–30 V~ Indication	12–30 V~ Illumination
310600 / 381600 – Rocker switch	–	Variant 1	–	Variant 4
31063x – Surface-mounted rocker switch	–	Variant 1	–	Variant 4
317600 – Rocker switch 16 AX	–	Variant 1	–	Variant 4
312600 / 383600 – Push-button switch	–	Variant 1	–	Variant 4
312700 / 383700 – Intermediate switch (push-button)	–	Variant 1	–	Variant 4
310700 / 381700 – Intermediate switch (rocker)	–	Variant 1	–	Variant 4
31073x – Surface-mounted intermediate switch	–	Variant 1	–	Variant 4
310200 / 381200 – Double-pole switch	Variant 1	Variant 1	Variant 4	Variant 4
31023x – Surface-mounted double-pole switch	Variant 1	Variant 1	Variant 4	Variant 4
311600 / 382600 – Rocker control switch	Variant 2	Variant 1	Variant 5	Variant 4
31163x / 31161x – Surface-mounted rocker control switch	Variant 2	Variant 1	Variant 5	Variant 4
318600 – Rocker control switch 16 AX	Variant 2	Variant 1	Variant 5	Variant 4
318630 – Surface-mounted rocker control switch 16 AX	Variant 2	Variant 1	Variant 5	Variant 4
313600 – Push-button control switch	Variant 2	Variant 1	Variant 5	Variant 4
313500 / 384500 – Series push-button control switch	Variant 3	–	–	–
311500 / 382500 – Series rocker control switch	Variant 3	–	–	–
311200 / 382200 – Rocker control switch 2-pole	Variant 1	Variant 1	Variant 4	Variant 4
31123x – Surface-mounted rocker control switch 2-pole	Variant 1	Variant 1	Variant 4	Variant 4
312200 / 384200 – Push-button control switch 2-pole	Variant 1	Variant 1	Variant 4	Variant 4
315100 / 387100 – Rocker push-button (without signalling contact)	–	Variant 2	–	Variant 5
315600 / 387600 – Rocker push-button changeover switch (without signalling contact)	–	Variant 2	–	Variant 5
31563x / 31561x – Surface-mounted rocker push-button changeover switch	–	Variant 2	–	Variant 5
315000 / 387000 – Rocker push-button with neutral terminal	–	Variant 1	–	Variant 4
315200 / 387200 – Rocker push-button with signalling contact	Variant 2	Variant 2	Variant 5	Variant 5
31523x – Surface-mounted rocker push-button with signalling contact	Variant 2	Variant 2	Variant 5	Variant 5

Specifications

Brand: GIRA
Class: Switch rockers
Colour: white
Manufacturer item number: 3791010
Manufacturer type: 3791010
Manufacturer's colour: white
