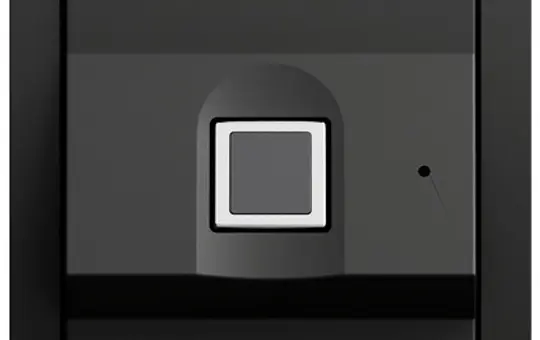

GIRA 261774 Keyless-In Finger Scanner System 70 | matte black

Gira Keyless In Fingerprint Reader Unit Matte Black (painted) System 70

Features:

• Installation in a device box.
• Stand-alone device or in combination with the Gira door communication system.
• In stand-alone operation, use of the integrated potential-free relay contacts for switching actions, e.g. for door openers with own power supply
  (e.g. standard doorbell transformer).
• Commissioning by direct configuration without PC or programming software.

Inputs and Outputs

• Switch contact: Two relays with potential-free changeover contacts, rated for AC/DC 24 V / 1.6 A.
• Two connections for power supply.

• Fingerprint module as a professional biometric access control system based on the new generation surface scan technology.
• Scanning of the lowest skin layer by high frequency. High recognition rate and tamper resistance.
• Evaluation of the unique characteristic features of the living human finger.
• Live finger detection.
• Up to 99 fingers can be managed by the fingerprint reader unit.
• Reliable recognition of fingers that have been slightly injured, e.g. during gardening (only the outermost skin layer has been damaged).
• Data protection through encryption methods.
• Fast response time from finger placement to release:
  up to 30 stored fingers approx. 1 s,
  up to 99 stored fingers approx. 3 s.
• Night design of the fingerprint surface for orientation using white LED lighting.
• 360° finger placement possible.
• 3-colour LED status display for optical signalling during programming and operation.
• Master PIN number on the enclosed sealed security card, if the administrator finger is no longer available. The device can be reset to factory settings using the enclosed security card.
• Confirmation buzzer for acoustic signalling for users or installers.
• Warning tone in case of unauthorised removal of the fingerprint attachment for sabotage detection. Sabotage switching with switching actuator in the Gira door communication system.
• The two integrated changeover relays can be assigned to different fingers, e.g. thumb: triggering door opening, index finger: switching the outdoor lighting.

Inputs and Outputs

• Connector strip for connection cable to the Gira door communication system.

Notes:

• With the TKS-IP gateway, the Keyless In devices can be connected to the Gira HomeServer. This enables intelligent linkages. For example, temporary or one-time access authorisations can be easily granted. All data including access authorisations can then be managed centrally and flexibly via the Gira HomeServer.

• Children's fingers can usually only be reliably recognised from the age of 6 years.
• Integration into Profile 55 possible.

Scope of delivery:
