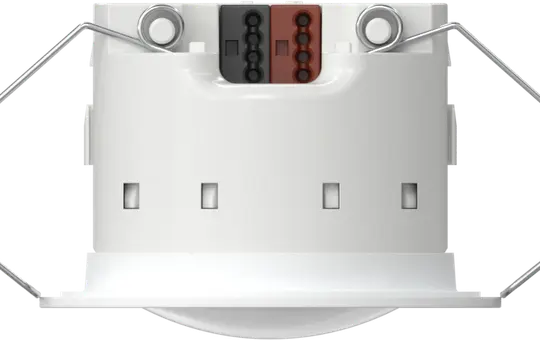

GIRA 2221530 KNX Presence Detector Secure Mini standard | white

GIRA 2221530 KNX Presence Detector Secure Mini | standard | white

Manufacturer: GIRA
Article no.: 20094748
EAN: 4010337129646
Manufacturer item number: 2221530
Manufacturer type: 2221530
Weight: 0,078 kg
Available on request
Electrical appliance take-back
pcs

Thanks to the discreet design, flat construction and flexible mounting concept, the Mini presence detectors are suitable for use in areas with high architectural demands.


The very flat installation allows unobtrusive integration into the ceiling.


  • Flush mounting via clamps on suspended ceilings.
  • Flush mounting on solid ceilings in a flush-mounted device box according to DIN 49073 using optional accessories.
  • Surface mounting in a surface-mounted device box (optional accessories).
  • Protection class IP44 allows installation outdoors or in damp rooms.
  • Paintable design ring allows colour adjustment to the wall or ceiling.
  • After removing the design ring, all operating elements (e.g. programming button) of the device are conveniently accessible from the front. This means no removal is necessary for subsequent adjustment or programming via ETS.
  • KNX Secure
  • Sensitivity adjustable for each functional block
  • Functional block switching
  • Movement status indicator (blue LED)
  • Walk test function
Acoustic sensor
No
Air pressure sensor
No
Amazon Alexa
No
Apple HomeKit
No
Area
Inside
BAB-Tec
No
Bluetooth
No
Brand
GIRA
Brightness sensor
Yes
Casambi
No
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
Yes
DALI
No
DALI-2
No
Detection angle in °
360
Detection area
circular
Detection area diameter in m
12
Detection type/sensor type
Passive infrared
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
6
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Home Assistant
No
Horizontal detection angle
360
Humidity sensor
No
Installation height in m
3
Installation location
Ceiling
Integrated constant light control
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
LED night light
No
Manufacturer item number
2221530
Manufacturer type
2221530
Manufacturer's colour
white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of areas
1
Protection class (IP)
IP44
Reach laterally in m
6
Remote controllable
No
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
