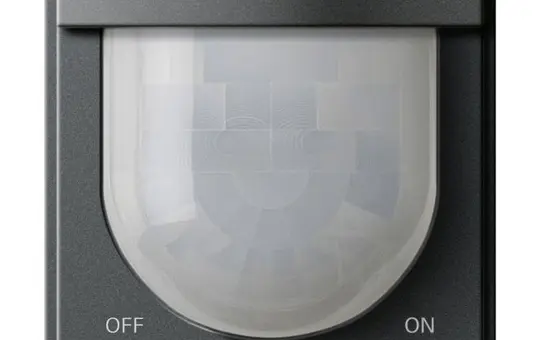

GIRA 205167 KNX motion detector TX_44 | 2.20 m, comfort | anthracite

Manufacturer: GIRA

Article no.: 20031613

EAN: 4010337027188

Manufacturer item number: 205167

Manufacturer type: 205167

Weight: 0,07 kg

Available on request

149,68 €

incl. VAT + shipping

pcs

Motion detector attachment 2.20 m Komfort for KNX Komfort Anthracite Features: Mounting on bus coupling unit 3. Configurable for motion detection (monitor application) or room monitoring (detector application). Evaluation of brightness when motion is actively detected in monitor mode. Switching off the lighting when the brightness threshold is exceeded. Configurable number of motion pulses within a monitoring time in detection mode. Motion detection is carried out digitally via 2 PIR sectors. Sensitivity of motion detection can be parameterized in stages separately for the PIR sectors. Integrated brightness sensor for determining the ambient brightness. Sensitivity can be adjusted via an adjuster on the device or with the PIR KNX IR remote control (accessory). Evaluation of the measured brightness using up to three independent brightness limit values. Display of motion detection (permanently or only during a walk test).

Area: Outside
Brand: GIRA
Class: Motion detector
Color: anthracite
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 10.00
Horizontal detection angle: 180
Installation height in m: 2.20
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 205167
Manufacturer type: 205167
Manufacturer's color: anthracite
Mounting type: flush-mounted
Number of areas: 1
old Voltus number: 1663947
Protection class (IP): IP44
Reach laterally in m: 6.00
suitable for installation in switch ranges: Yes
suitable for wall mounting: Yes
Supply voltage: BUS voltage
Surface: matt
Type of transmission: Cable
