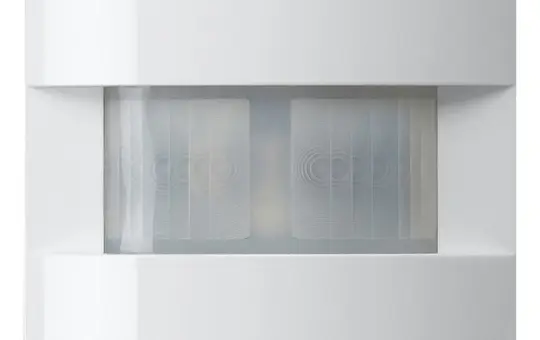

GIRA 2040112 KNX motion detector system area | 1.10 m, standard | pure white shiny

Manufacturer: GIRA

Article no.: 20031568

EAN: 4010337026860

Manufacturer item number: 2040112

Manufacturer type: 2040112

Weight: 0,08 kg

Available on request

93,11 €

incl. VAT + shipping

pcs

Motion detector attachment 1.10 m standard for KNX Standard Pure white glossy Features: Mounting on bus coupling unit 3. Configurable for motion detection (monitor application) or room monitoring (detector application). Brightness evaluation when motion is actively detected in monitor mode. Lighting is switched off when the brightness threshold is exceeded. Configurable number of motion pulses within a monitoring time in detector mode. Motion detection is performed digitally via 2 PIR sectors. Sensitivity of motion detection can be configured separately for each PIR sector in stages. Integrated brightness sensor for determining ambient brightness. Sensitivity adjustment via a control on the device. Motion detection is displayed (permanently or only during a walk test). One function block can be configured. Function block can be configured for the "monitor," "monitor with switch-off brightness," or "detector" application.

Brand: GIRA
Class: Motion detector
Color: white
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 10.00
Horizontal detection angle: 180
Installation height in m: 1.10
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 2040112
Manufacturer type: 2040112
Manufacturer's color: reinweiß
Mounting type: flush-mounted
Number of areas: 1
old Voltus number: 1663841
Reach laterally in m: 6.00
suitable for installation in switch ranges: Yes
suitable for wall mounting: Yes
Supply voltage: BUS voltage
Surface: glänzend
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Deeplink

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: GIRA
Class: Motion detector
Color: white
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 10.00
Horizontal detection angle: 180
Installation height in m: 1.10
Installation location: Wall
KNX: Yes
KNX-TP: Yes
Manufacturer item number: 2040112
Manufacturer type: 2040112
Manufacturer's color: reinweiß
Mounting type: flush-mounted
Number of areas: 1
old Voltus number: 1663841
Reach laterally in m: 6.00
suitable for installation in switch ranges: Yes
suitable for wall mounting: Yes
Supply voltage: BUS voltage
Surface: glänzend
Type of transmission: Cable
