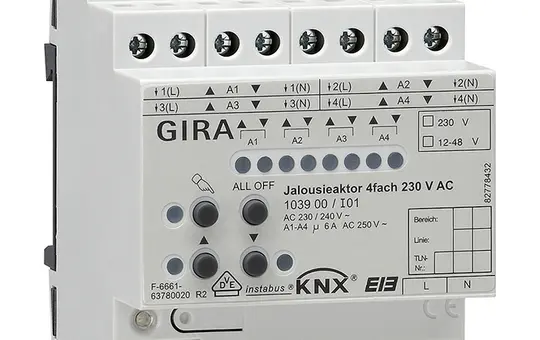

GIRA 103900 KNX Shutter Actuator 230 V AC/12-48 V DC | 4-fold

Manufacturer: GIRA

Article no.: 20022517

EAN: 4010337042211

Manufacturer item number: 103900

Manufacturer type: 103900

Weight: 0,399 kg

In stock

Delivery: 2-3 business days

pcs

Shutter actuator 4-fold AC 230 V DC 12 - 48 V with manual operation for KNX

REG plus shutter actuators with integrated bus coupling, manual operation and status display for each output. For controlling electrically operated shutters, roller blinds, awnings, ventilation flaps or similar coverings.

Features:

Cover position directly controllable.
Slat position directly controllable.
Behaviour adjustable in case of bus voltage failure and restoration.
Separately parameterisable running times with running time extension for movements to the upper end position.
Central control of all shutter outputs possible.
Feedback of the cover position or the slat position.
Feedback can be delayed after bus voltage restoration.
Assignments to up to five different safety functions (three wind alarms, one rain alarm, one frost alarm), optionally with cyclical monitoring.
Forced position function can be realised for each shutter output.

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Blind actuators
DALI: No
Dimming: No
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 103900
Manufacturer type: 103900
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 4
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
SMI control: No
Sun position calculation: No
Theben LUXORliving: No
Thread: No
Travel time measurement: No
Type of transmission: Cable
Ventilation function: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet

Deeplink

Manufacturer information

GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Cover position directly controllable.
Slat position directly controllable.
Behaviour adjustable in case of bus voltage failure and restoration.
Separately parameterisable running times with running time extension for movements to the upper end position.
Central control of all shutter outputs possible.
Feedback of the cover position or the slat position.
Feedback can be delayed after bus voltage restoration.
Assignments to up to five different safety functions (three wind alarms, one rain alarm, one frost alarm), optionally with cyclical monitoring.
Forced position function can be realised for each shutter output.

Specifications

BAB-Tec: No
Binary inputs integrated: No
Blinds: Yes
Bluetooth: No
Brand: GIRA
Casambi: No
Class: Blind actuators
DALI: No
Dimming: No
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 103900
Manufacturer type: 103900
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 4
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
SMI control: No
Sun position calculation: No
Theben LUXORliving: No
Thread: No
Travel time measurement: No
Type of transmission: Cable
Ventilation function: No
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
