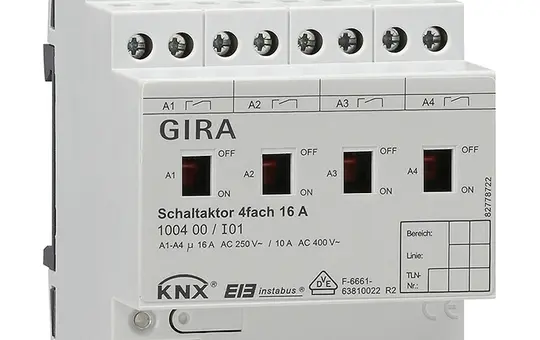

GIRA 100400 KNX Switching Actuator with Manual Operation 16 A | 4-fold

Manufacturer: GIRA

Article no.: 20022515

EAN: 4010337042174

Manufacturer item number: 100400

Manufacturer type: 100400

Weight: 0,292 kg

Available on request

pcs

Switch actuator 4-fold 16 A with manual operation for KNX

REG plus REG switch actuators with integrated bus coupling. For switching independently controllable load groups. With manual switch for toggling the relay (on/off) parallel or without KNX operation. Multi-phase connection. No additional power supply required.

Features:

Manual operation of the relays independent of the bus or the switching status display.
Normally closed or normally open operation.
Central switching function.
Collective feedback to reduce bus load.
Active or passive (object readable) cyclical feedback function.
Feedback can be delayed after bus voltage recovery.
Logical linking function for each output.
Locking function configurable for each channel. Alternatively, forced position function for each output.
Time functions (switch-on or switch-off delay, staircase lighting function – also with pre-warning function).
Inclusion in light scenes possible, up to eight internal scenes per channel can be parameterised.

BAB-Tec: No
Binary inputs integrated: No
Bistable relays: Yes
Blinds: No
Bluetooth: No
Brand: GIRA
Capacitive load in µF: 140
Casambi: No
Class: switching actuators
Current measurement: No
DALI: No
Dimming: No
Division units: 4 TE
ENOcean: No
Fan coil: No
free@home: No
Gira One: No
Hager KNXeasy: No
Inputs for potential-free contacts: No
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 100400
Manufacturer type: 100400
Matter: No
max. switching current in A: 16
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: Series installation
Number of outputs: 4
Rated voltage outputs: 230V AC
Shelly: No
Siemens LOGO!: No
Size of connection terminal in mm2: 4
suitable for C load: No
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
Wi-Fi: No
Wiser Home: No
with Netatmo: No
Zigbee: No
