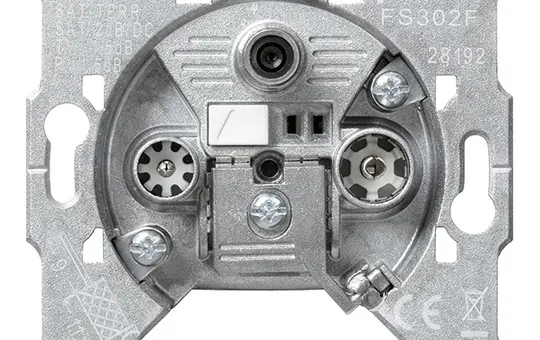

GIRA 093700 antenna socket 3-fold, SAT, stitch, 2 dB

GIRA 093700 antenna socket | 3-fold, SAT, stitch, 2 dB

Manufacturer: GIRA
Article no.: 20032673
EAN: 4010337937005
Manufacturer item number: 093700
Manufacturer type: 093700
Weight: 0,1239 kg
In stock
Delivery: 2-3 business days
19,96 €
incl. VAT + shipping
pcs
Antenna socket insert (FS 302 F) Features: With three connections, it can be used as a terminal outlet. Use in single-antenna systems, behind a multiswitch, or on a decoupled stub line. The connection for the satellite receiver is designed as an F-socket. This also enables DC voltage transmission (max. DC 24 V 500 mA) to a satellite antenna. Notes: For screw mounting only. Caution! Observe the installation space for the plug and bending radii. When using connectors with couplings, please note: Not suitable for duct installation or standard device sockets. Connection with right-angle plugs is recommended. When using these connectors, the power limit for connected devices is 15 watts. Installation recommendation: Kaiser Electronic sockets. Flush-mounted installation: Kaiser Order No.: 1068-02. Cavity wall installation: Kaiser Order No.: 9062-94. Concrete installation: Kaiser Order No.: 1268-40.
Brand
GIRA
Characteristic
3-hole
Class
Antenna sockets
Configuration
End socket
Configuration of the socket
SAT | TV | radio
Manufacturer item number
093700
Manufacturer type
093700
Mounting type
flush-mounted
old Voltus number
1047647
Series
ClassiX | E1 | E2 | E3 | Esprit | Event | Standard 55 | Studio | S-Color | Flächenschalter | TX_44

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Deeplink
Produktdatenblatt
Manufacturer information
GIRA
GIRA Giersiepen GmbH & Co. KG
Dahlienstr. 12
42477 Radevormwald
DE

info@gira.de
www.gira.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
Recycling & disposal
Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
