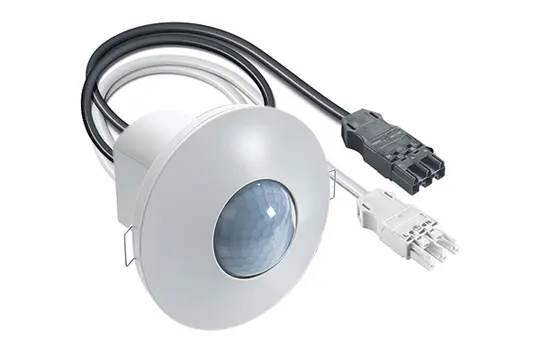

ESYLUX MD-C 360i/8 WAGO WINSTA CodeA DALI-2 Motion Detector MD-C 360°, 8 m, WAGO WINSTA | white

ESYLUX MD-C 360i/8 WAGO WINSTA CodeA DALI-2 Motion Detector MD-C | 360°, 8 m, WAGO WINSTA | white

Manufacturer: ESYLUX
Article no.: 20088026
EAN: 4015120424809
Manufacturer item number: EP10424809
Manufacturer type: MD-C 360i/8 WAGO WINSTA CodeA
Weight: 0,665 kg
Available on request
Electrical appliance take-back
pcs
Motion detector with 360° detection range for ceiling mounting.

Range of up to 8 m in diameter at a recommended mounting height of 3 m (maximum mounting height 5 m) for use in small rooms and passage areas with no or low daylight exposure.

2.0 m pre-assembled WAGO WINSTA® supply and return line.

16 A high-performance relay (tungsten pre-contact), specially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps.

Fixed factory programme for immediate readiness for operation.

Automatic light control for applications with no or very low daylight exposure.

Simple programming via remote control with 'blue mode' technology or via adjustment elements.

Integrated switch for setting via remote control or adjustment dial – prevents incorrect operation and acts as sabotage protection.

Suppression of interference sources by reducing sensitivity
Acoustic sensor
No
Air pressure sensor
No
Amazon Alexa
No
Apple HomeKit
No
Area
Inside
BAB-Tec
No
Bluetooth
No
Brand
ESYLUX
Brightness sensor
Yes
Casambi
No
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI
Yes
DALI-2
Yes
Detection angle in °
360
Detection area
circular
Detection area diameter in m
8
Detection type/sensor type
Passive infrared
ENOcean
No
fits in 55 switch range
No
free@home
No
Frontal range in m
3
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Home Assistant
No
Humidity sensor
No
Installation height in m
10
Installation location
Ceiling
Integrated constant light control
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
LED night light
No
Manufacturer item number
EP10424809
Manufacturer type
MD-C 360i/8 WAGO WINSTA CodeA
Manufacturer's colour
white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of areas
1
Protection class (IP)
IP20
Reach laterally in m
4
Remote controllable
Yes
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
No
Surface
matt
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
