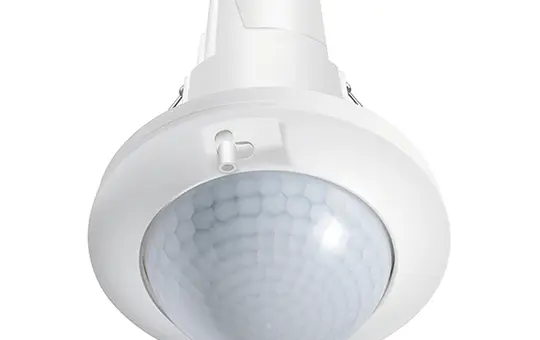

ESYLUX EP10428111 DALI-2 presence detector PD-C | 360°, 24 m, APC20 PS plus flush-mounted

Manufacturer: ESYLUX

Article no.: 20004217

EAN: 4015120428111

Manufacturer item number: EP10428111

Manufacturer type: EP10428111

Weight: 0,224 kg

Available on request

330,07 €

incl. VAT + shipping

pcs

ERSYLUX's compact presence and motion detectors are versatile and offer switching, dimming, and HVAC functions. With touch detectors and a touch-sensitive lens surface, they offer convenience and energy efficiency. Technical specifications: Ceiling installation, installation depth 91 mm, Ø 68 mm, UV-stabilized polycarbonate, IP20, ambient temperature -25 to +50 degrees Celsius, detection angle 360 degrees, detection range up to 24 m, brightness value approx. 5 - 2000 lux, constant light control, DALI bus/addressable interface, switching capacity channel 3: 230 V/50 Hz, 16 A relay.

Brand: ESYLUX
Brightness sensor: Yes
Class: Presence detector
Color: white
DALI: Yes
DALI-2: Yes
Detection angle in °: 360
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 3.00
Installation height in m: 3.00
Installation location: Ceiling
Manufacturer item number: EP10428111
Manufacturer type: EP10428111
Mounting type: flush-mounted
old Voltus number: 1689541
Protection class (IP): -
Reach laterally in m: 4.00
suitable for ceiling mounting: Yes
Surface: -
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

ESYLUX
ESYLUX Deutschland GmbH
An der Strusbek 40
22926 Ahrensburg
DE

info@esylux.de
www.esylux.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: ESYLUX
Brightness sensor: Yes
Class: Presence detector
Color: white
DALI: Yes
DALI-2: Yes
Detection angle in °: 360
Detection area: circular
Detection type/sensor type: Passive infrared
Different bus system: -
Frontal range in m: 3.00
Installation height in m: 3.00
Installation location: Ceiling
Manufacturer item number: EP10428111
Manufacturer type: EP10428111
Mounting type: flush-mounted
old Voltus number: 1689541
Protection class (IP): -
Reach laterally in m: 4.00
suitable for ceiling mounting: Yes
Surface: -
Type of transmission: Cable
