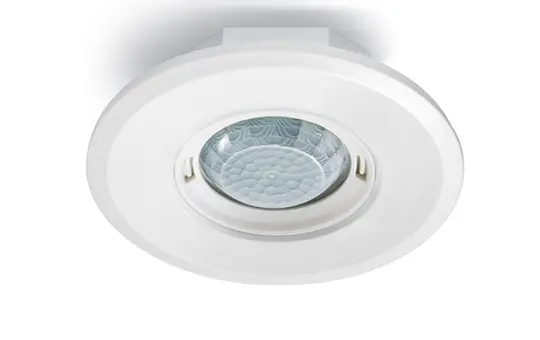

ESYLUX EP10427886 Motion Detector MD-FLAT | 360°, round ceiling installation | white

Manufacturer: ESYLUX

Article no.: 20003287

EAN: 4015120427886

Manufacturer item number: EP10427886

Manufacturer type: MD-FLAT 360i/8 RW

Weight: 0,126 kg

In stock

Delivery: 2-3 business days

pcs

Motion detector round white MD-FLAT 360i/8 RD WH

Type of motion detector, sensor type passive infrared, forced switching on, forced switching off, crawl-under protection/rear field monitoring, scanning angle 360°, optimal mounting height 2.5 m, stairwell monitoring, max. range to one side 4 m, max. frontal range 3 m, detection field diameter on floor 8 m, remote controllable, adjustable response sensitivity, adjustable response brightness, with signal unit, suitable for ceiling mounting, mounting type flush-mounted, connection type plug terminal, material plastic, material quality thermoplastic, surface protection untreated, surface finish matt, colour white, RAL number (similar) 9010, protection rating (IP) IP20, voltage type AC, frequency 50 ... 50 Hz, rated voltage 230 V, min. switch-on duration 60 s, max. switch-on duration 30 min, switch-off delay 0 s, switch-on delay 30 s, horizontal detection angle 180 ...

Acoustic sensor: No
Air pressure sensor: No
Area: Inside
Brand: ESYLUX
Brightness sensor: Yes
Class: Motion detector
CO2 sensor: No
Colour: white
Crawl protection: Yes
DALI-2: No
Detection angle in °: 360
Detection area: circular
Detection type/sensor type: Passive infrared
Frontal range in m: 3
Humidity sensor: No
Installation height in m: 2.5
Integrated constant light control: No
LED night light: No
Manufacturer item number: EP10427886
Manufacturer type: MD-FLAT 360i/8 RW
Manufacturer's colour: white
Material: Plastic
Mounting type: flush-mounted
Number of areas: 1
Protection class (IP): IP20
Reach laterally in m: 4
Remote controllable: Yes
suitable for ceiling mounting: Yes
suitable for installation in switch ranges: No
suitable for wall mounting: No
Surface: matt
Temperature sensor: No
VOC sensor: No

Manufacturer information

ESYLUX
ESYLUX Deutschland GmbH
An der Strusbek 40
22926 Ahrensburg
DE

info@esylux.de
www.esylux.de/

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
