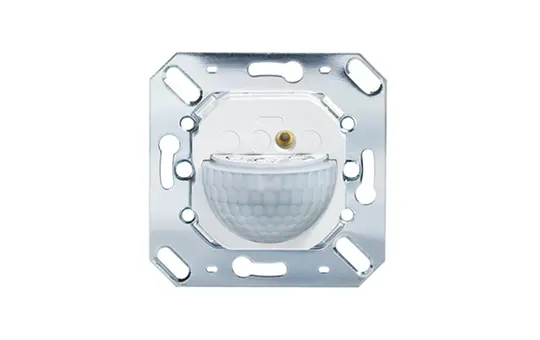

ESYLUX EM10410024 Presence Detector PD 180°, 16 m, wall detector (slave)

ESYLUX EM10410024 Presence Detector PD | 180°, 16 m, wall detector (slave)

Manufacturer: ESYLUX
Article no.: 20001183
EAN: 4015120410024
Manufacturer item number: EM10410024
Manufacturer type: MD/PD 180 Slave
Weight: 0,072 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Wall presence detector 180 degrees MD/PD 180 Slave version

Presence detector, sensor type passive infrared, pet corridor, crawl-under protection/rear field monitoring, scan angle 180°, optimal mounting height 1.1 m, stairwell monitoring, max. range to one side 8 m, max. presence area 6.29 m², max. frontal range 3 m, detection field diameter on floor 16 m, with signalling unit, suitable for wall mounting, installation type flush-mounted, connection type plug terminal, material plastic, material quality thermoplastic, halogen-free, surface protection untreated, surface finish matt, colour other, transparent, protection rating (IP) IP20, voltage type AC, frequency 50 ... 50 Hz, rated voltage 230 V, min. switch-on time 0 s, max. switch-on time 0 min, switch-off delay 0 s, switch-on delay 0 s, horizontal detection angle 90 ... 180°, sensor swivel range horizontal 0°, sensor swivel range vertical 0°.
Acoustic sensor
No
Air pressure sensor
No
Area
Inside
Brand
ESYLUX
Brightness sensor
Yes
Class
Presence detector
CO2 sensor
No
Colour
white
Crawl protection
Yes
DALI-2
No
Detection angle in °
180
Detection area
circular
Detection type/sensor type
Passive infrared
Frontal range in m
3
Humidity sensor
No
Installation height in m
1.1
Integrated constant light control
No
LED night light
No
Manufacturer item number
EM10410024
Manufacturer type
MD/PD 180 Slave
Material
Plastic
Mounting type
flush-mounted
Number of areas
1
Protection class (IP)
IP20
Reach laterally in m
8
Remote controllable
No
suitable for ceiling mounting
No
suitable for wall mounting
Yes
Surface
matt
Temperature sensor
No
VOC sensor
No
Manufacturer information
ESYLUX
ESYLUX Deutschland GmbH
An der Strusbek 40
22926 Ahrensburg
DE

info@esylux.de
www.esylux.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
Recycling & disposal
Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
