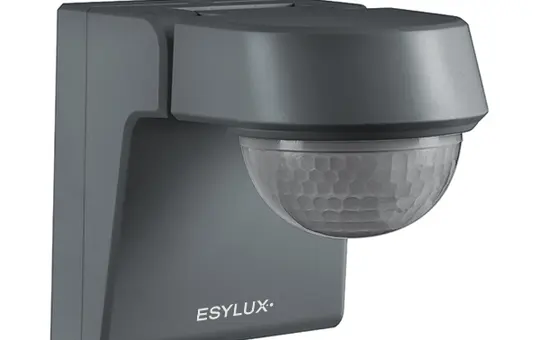

ESYLUX EM10025389 Outdoor Motion Detector 230° | anthracite

ESYLUX EM10025389 Outdoor Motion Detector | 230° | anthracite

Manufacturer: ESYLUX
Article no.: 20088032
EAN: 4015120025389
Manufacturer item number: EM10025389
Manufacturer type: DEFENSOR MD 230° 40 IR 1C IP55 AN
Weight: 0,332 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Motion detector with 230° detection range and Ø 40 m reach (tangential). Time-dependent operating modes. Intelligent vandalism and sabotage protection (light on in case of malfunction). 360° anti-creeping protection for seamless detection (deactivatable). Direction-dependent run-on time. Password protection against unauthorised parameterisation. Immediate readiness for operation with factory settings. Easy parameterisation via ESY-Pen and ESY-App. Flexible sensor head for wall and ceiling mounting. Quick installation with push-in terminals up to 2.5 mm2. Through-wiring via double membrane cable entry also for underground cables with Ø 15 mm. Masking of detection areas using the enclosed, cut-to-size lens mask. Sensitivity of detection areas customisable. Very high surge protection (Surge 2 kV, Burst 4 kV). Zero-cross switching for relay-friendly switching of LEDs. Push-button input. Impulse function. Special socket for internal and external corner mounting available as an accessory.
Acoustic sensor
No
Air pressure sensor
No
Area
Outside
Brand
ESYLUX
Brightness sensor
Yes
Class
Motion detector
CO2 sensor
No
Colour
anthracite
Crawl protection
Yes
DALI-2
No
Detection angle in °
230
Detection area
circular
Detection area diameter in m
40
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
5
Humidity sensor
No
Installation height in m
3
Integrated constant light control
No
LED night light
No
Manufacturer item number
EM10025389
Manufacturer type
DEFENSOR MD 230° 40 IR 1C IP55 AN
Manufacturer's colour
anthracite
Material
Plastic
Mounting type
Surface-mounted
Number of areas
1
Protection class (IP)
IP55
Reach laterally in m
20
Remote controllable
Yes
suitable for ceiling mounting
Yes
suitable for installation in switch ranges
No
suitable for wall mounting
Yes
Surface
matt
Temperature sensor
No
VOC sensor
No
