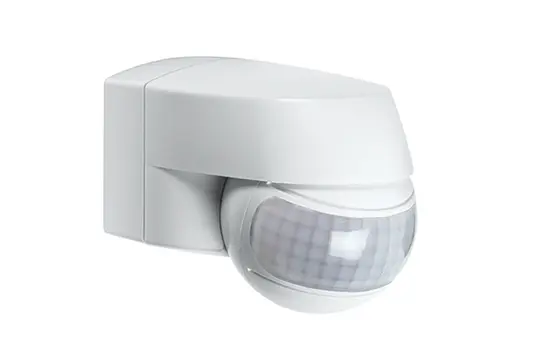

ESYLUX EM10025211 Motion Detector MD 120°, 12 m, wall detector | white

ESYLUX EM10025211 Motion Detector MD | 120°, 12 m, wall detector | white

Manufacturer: ESYLUX
Article no.: 20001257
EAN: 4015120025211
Manufacturer item number: EM10025211
Manufacturer type: MD 120 ws
Weight: 0,252 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs
Motion Detector 120 Degrees MD 120 White


Type of device: Motion detector, sensor type passive infrared, scanning angle 120°, optimal mounting height 2.5 m, maximum range to one side 12 m, maximum frontal range 5 m, detection field diameter on the floor 12 m, adjustable response brightness, suitable for wall mounting, surface mounting type, connection type plug-in terminal, material plastic, material quality thermoplastic, surface protection untreated, surface finish matt, colour white, RAL number (similar) 9010, protection rating (IP) IP44, voltage type AC, frequency 50 ... 50 Hz, rated voltage 230 V, minimum switch-on time 4 s, maximum switch-on time 10 min, switch-off delay 0 s, switch-on delay 0 s, horizontal detection angle 60 ... 120°, sensor swivel range horizontal 0 ... 90°, sensor swivel range vertical 0 ... 60°, response brightness 3 ... 2000 lx, maximum switching capacity 1000 W, maximum switching capacity LED 250 W, suitable for capacitive load, temperature -25 ... 55 °C, number of switching zones 1
Acoustic sensor
No
Air pressure sensor
No
Area
Outside
Brand
ESYLUX
Brightness sensor
Yes
Class
Motion detector
CO2 sensor
No
Colour
white
Crawl protection
No
DALI-2
No
Detection angle in °
120
Detection area
circular
Detection type/sensor type
Passive infrared
fits in 55 switch range
No
Frontal range in m
5
Humidity sensor
No
Installation height in m
2.5
Integrated constant light control
No
LED night light
No
Manufacturer item number
EM10025211
Manufacturer type
MD 120 ws
Manufacturer's colour
white
Material
Plastic
Mounting type
Surface-mounted
Number of areas
1
Protection class (IP)
IP44
Reach laterally in m
12
Remote controllable
No
suitable for ceiling mounting
No
suitable for installation in switch ranges
No
suitable for wall mounting
Yes
Surface
matt
Temperature sensor
No
VOC sensor
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
ESYLUX
ESYLUX Deutschland GmbH
An der Strusbek 40
22926 Ahrensburg
DE

info@esylux.de
www.esylux.de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
