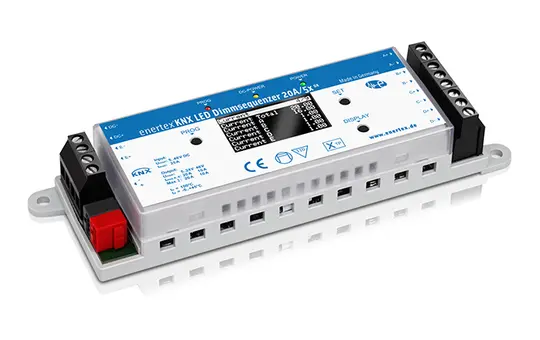

ENERTEX 1174-DK KNX LED dimming actuator | Ceiling insertion

Manufacturer: ENERTEX

Article no.: 20004000

EAN: 0762743208616

Manufacturer item number: 1174-DK

Manufacturer type: 1174-DK

Weight: 0,13 kg

In stock

Delivery: 2-3 business days

210,80 €

incl. VAT + shipping

pcs

The ENERTEX 1174-DKKNX LED dimming sequencer 20A/5x is a pulse-width modulating dimmer for 5-48 V LED modules with 5 dimming channels. It is suitable for any LED light source capable of DC constant voltage. With a PWM frequency adjustable in steps between 211 and 1200 Hz, it offers maximum flexibility. Various operating modes such as cool white/warm white, RGB(CCT/W), or individual channels are possible. The device offers four different dimming characteristics to choose from with an integrated soft dimming function and offers protection functions for overvoltage/undervoltage, overcurrent, and overtemperature. Diagnostics and messages are transmitted via KNX group addresses. LEDs for programming mode and LED power supply voltage, as well as buttons for programming, make operation easy. The compact size of 157.0 x 45.0 x 25.5 mm and IP20 protection class make it ideal for flush-mounted installation.

Brand: ENERTEX
Color control: -
Connection type CC: -
DALI Device Type: -
Day/night function: Yes
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
KNX: Yes
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 1174-DK
Manufacturer type: 1174-DK
Number of outputs: 5
old Voltus number: 1700374
Output current in mA: 20000
Output power in W: 480.00
Parallel operation of channels possible: Yes
Rated voltage outputs: 5 - 48V DC
Size of connection terminal in mm2: 4.00
Type of transmission: Cable

Manufacturer information

ENERTEX
Enertex Bayern GmbH
Ebermannstädter Str. 8
91301 Forchheim
DE

mail@enertex.de
www.enertex.de/d-index.html

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Brand: ENERTEX
Color control: -
Connection type CC: -
DALI Device Type: -
Day/night function: Yes
Different bus system: -
Dimming: Yes
Dimming method: PWM constant voltage CV
Division units: -
KNX: Yes
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 1174-DK
Manufacturer type: 1174-DK
Number of outputs: 5
old Voltus number: 1700374
Output current in mA: 20000
Output power in W: 480.00
Parallel operation of channels possible: Yes
Rated voltage outputs: 5 - 48V DC
Size of connection terminal in mm2: 4.00
Type of transmission: Cable
