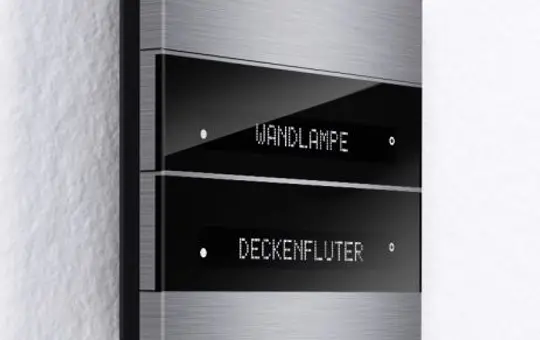

ENERTEX 1157-02-al KNX Room Controller | standard | brushed aluminum

Manufacturer: ENERTEX

Article no.: 20002632

Manufacturer item number: 1157-02-al

Manufacturer type: MeTa 1157-02-al

Weight: 0,51 kg

Available on request

pcs

MeTa® is powered directly by the KNX bus and does not require an external power supply. A menu button and two or four (premium version) electronically labelled mechanical rocker switches can trigger KNX telegrams (switching, dimming, etc.). Furthermore, this allows the user to configure the room controller directly on the device, e.g. changing the target temperature. The room controller measures temperature, humidity (standard & premium version), and colour intensity. The brightness of the display backlight can be automatically adjusted to the ambient brightness via the built-in brightness sensor, set to a fixed level, or switched off.

Enertex® MeTa® KNX Standard:
- Integrated temperature and humidity sensor
- Integrated RGBW light sensor
- Two electronically labelled mechanical rocker switches with up to 16 switching functions
- Menu button
- External switching contact
- Room controller for heating and cooling
- Dimensions: 90 x 90 x 14.6 mm

BAB-Tec: No
Bluetooth: No
Brand: ENERTEX
Casambi: No
Class: Touch sensors
CO2 sensor: No
Color temperature control: No
Colour: silver
Customizable: No
DALI: No
ENOcean: No
fits in 55 switch range: No
free@home: No
Gira One: No
Hager KNXeasy: No
Humidity sensor: Yes
Infrared sensor: No
Installation location: Wall
Integrated actuator: No
Integrated binary input: Yes
Integrated room temperature controller: Yes
JUNG HOME: No
KNX: Yes
KNX-RF: No
KNX-Secure: No
KNX-TP: Yes
Label field: Yes
Manufacturer item number: 1157-02-al
Manufacturer type: MeTa 1157-02-al
Manufacturer's colour: brushed aluminum
Material: aluminum
Matter: No
Mbus: No
Modbus: No
Modbus RTU: No
Modbus TCP: No
Mounting type: flush-mounted
Number of binary inputs: 1
Number of buttons: 2
Operating mode: push button
Protection class (IP): IP20
Proximity sensor: No
RGB lighting control: Yes
RGB status LED: No
Shelly: No
Siemens LOGO!: No
Status LED, control light: Yes
suitable for installation in switch ranges: No
Surface: glossy
Temperature sensor: Yes
Theben LUXORliving: No
Thread: No
Type of transmission: Cable
VOC sensor: No
Wi-Fi: No
Wiser Home: No
with display: Yes
with Netatmo: No
Zigbee: No

Manufacturer information

ENERTEX
Enertex Bayern GmbH
Ebermannstädter Str. 8
91301 Forchheim
DE

mail@enertex.de
www.enertex.de/d-index.html

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
