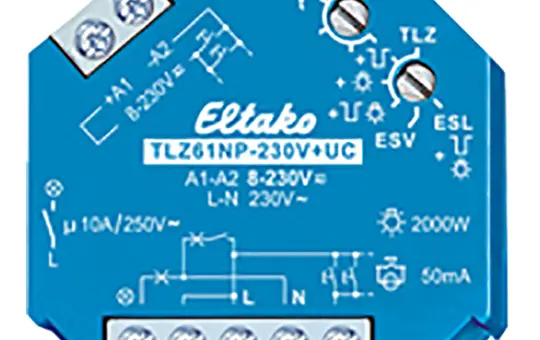

ELTAKO TLZ61NP-230V+UC Staircase Light Timer Switch 1S, UC

ELTAKO TLZ61NP-230V+UC Staircase Light Timer Switch | 1S, UC

Manufacturer: ELTAKO
Article no.: 20032658
EAN: 4010312400739
Manufacturer item number: 61100301
Manufacturer type: TLZ61NP-230V+UC
Weight: 0,046 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
Staircase timer switch 8-230VUC, 1S, 16A TLZ61NP-230V+UC

Function electronic with switch-off pre-warning, mounting type flush-mounted, width in modular units 0, installation depth 18 mm, number of contacts as normally closed contact 1, number of contacts as normally open contact 0, number of contacts as changeover contact 0, control voltage 1 230 ... 230 V, control voltage type 1 AC, frequency of control voltage 1 50 ... 50 Hz, control voltage 2 8 ... 230 V, control voltage type 2 AC/DC, rated switching current 10 A, drop-out delay 1 ... 12 min, pushbutton glow lamp current 50 mA, circuit type 3- and 4-wire circuit, switch-off pre-warning flicker, subsequent switching switchable + continuous light + time extension, supply voltage 250 ... 250 V, supply voltage type AC, max. incandescent lamp load 2000 W, max. fluorescent lamp load 1000 VA, max. fluorescent lamp load (duo circuit) 1000 VA, max. fluorescent lamp load (parallel compensated) 500 VA, max. switching capacity LED 200 W,
Brand
ELTAKO
Class
Staircase lighting units
Control voltage
230V
Division units
0 TE
Manufacturer item number
61100301
Manufacturer type
TLZ61NP-230V+UC
Mounting type
flush-mounted
Rated current in A
10

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manufacturer information
ELTAKO
Eltako GmbH
Hofener Str. 54
70736 Fellbach
DE

info@eltako.de
www.eltako.com/de/

Hints
  • Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.
Recycling & disposal
Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.
